't Landje, 't Theatertje

MAster project, Interior building cities, TU Delft, 2021
Tutors: Susanne Pietsch & koen mulder

The project is centrally situated in Amsterdam’s city center, nestled on the grounds known as ‘t Landje. Positioned adjacent to the renowned music concert hall Paradiso and opposite a high school. The program of the builging consists of a spacious theater on the ground floor, a more intimate theater space on the first floor, and music classrooms on the second floor. The programm is the result of a context research, revealing a need from the high school for both a break space and facilities for cultural activities. In response to this insight, the informal theater not only addresses the high school’s requirements but also serves as a cultural venue during weekends and evenings. This dual-purpose facility becomes a cultural hub, catering to both the school community and the broader neighbourhood including Paradiso. The process consist of a 'workshop week' at the beginning, followed by drawing and modelling the context in Autocad and Rhino. Alongside the design process one reference project is analysed: 'De Plantage', and one embedded narrative is explored: 'De Rijkskas'.
Design: solo work - Embedded narrative: together with Sha Vaseghi - Reference project: together with Rui Wei
Design

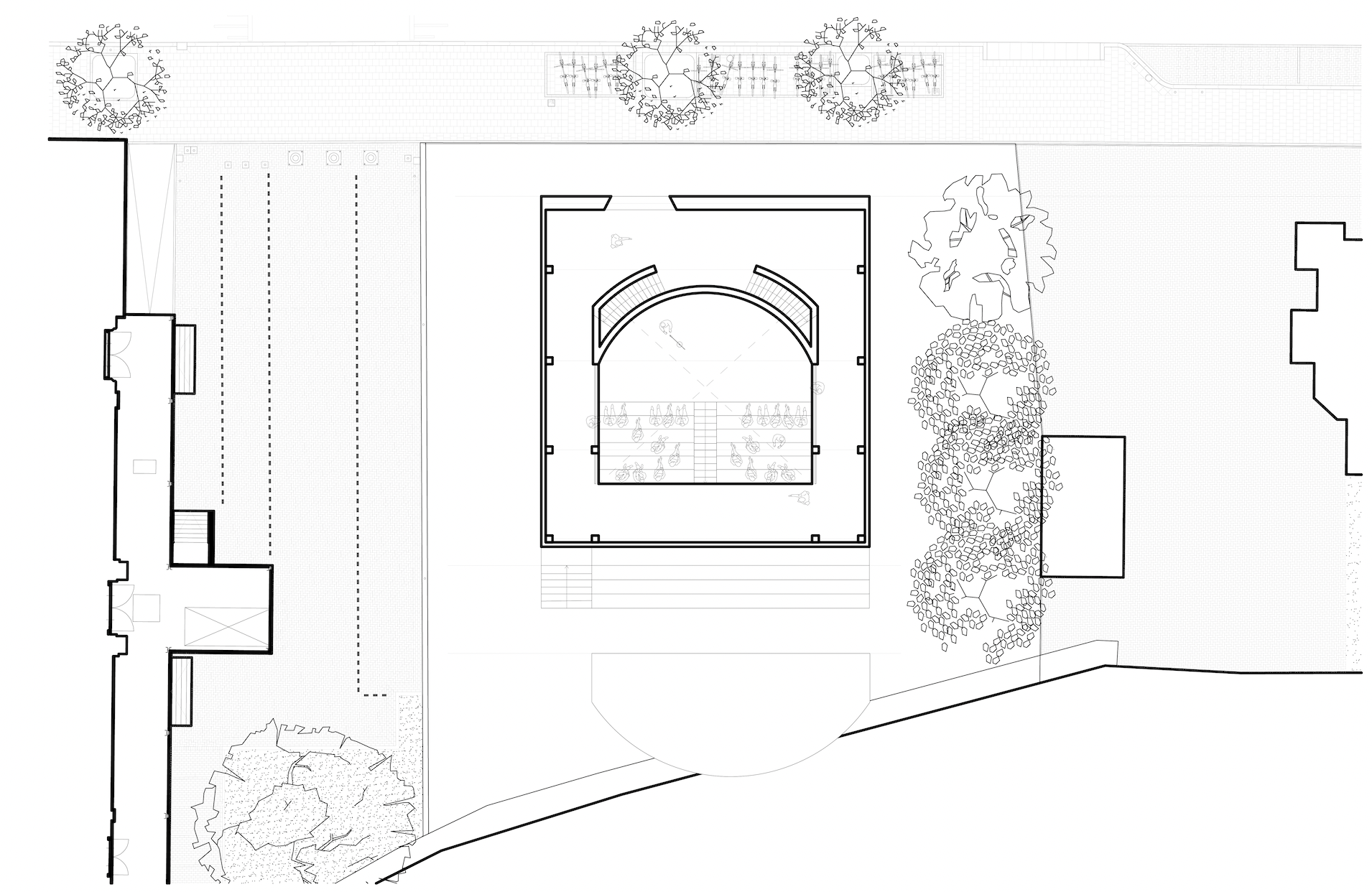

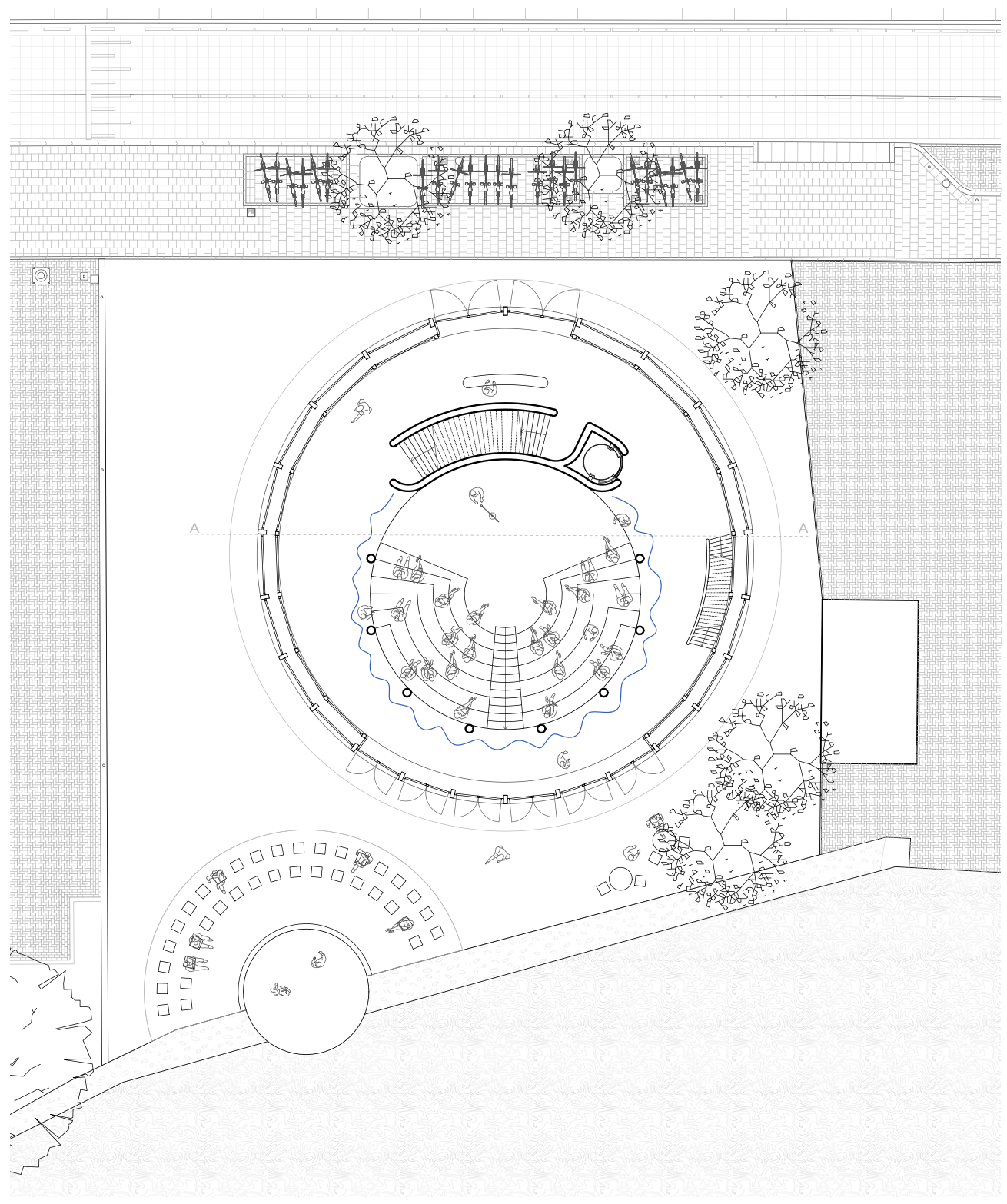

Floor plan 00

Floor plan  -01, 01, 02

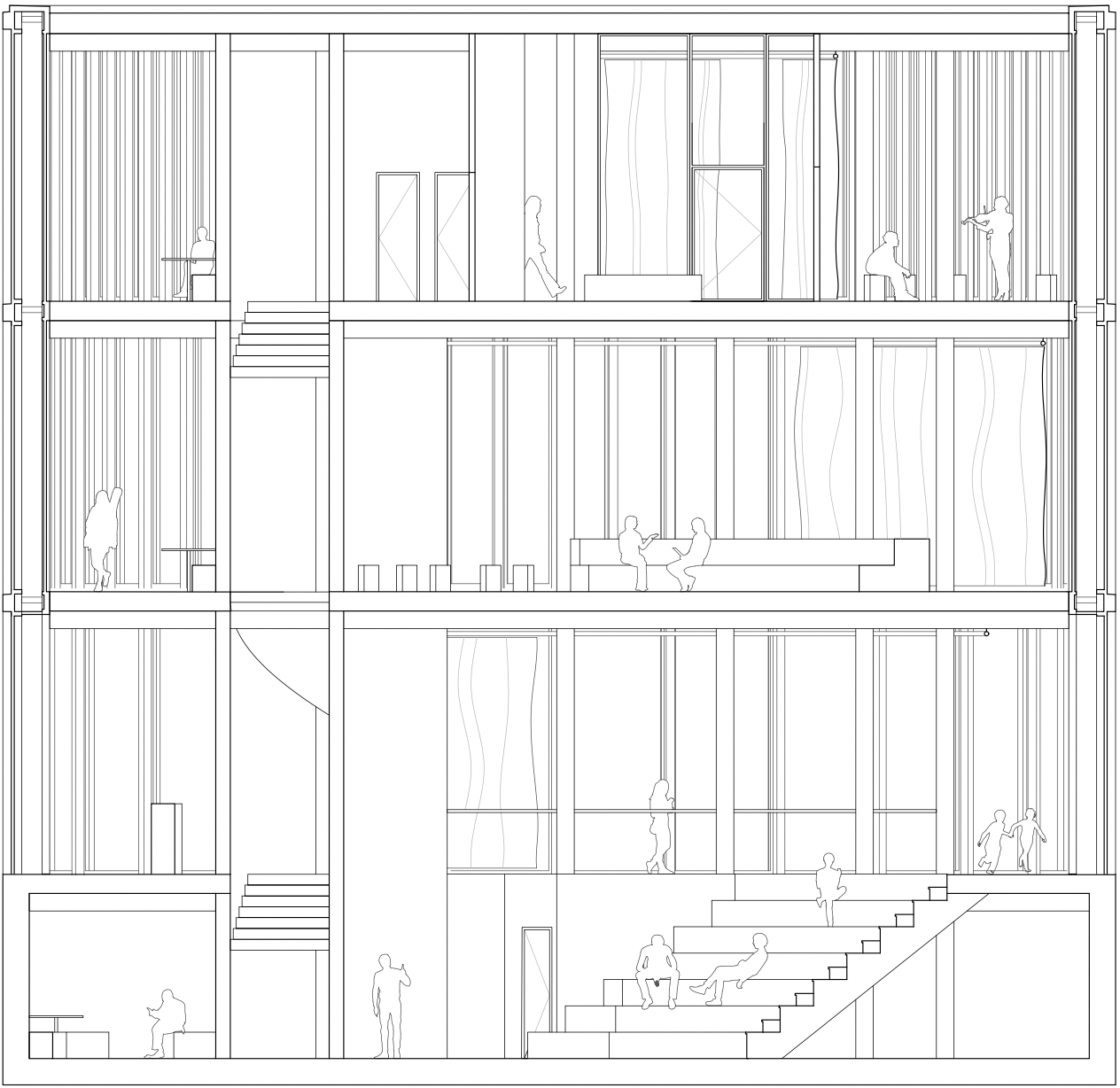

               Section AA

Section AA

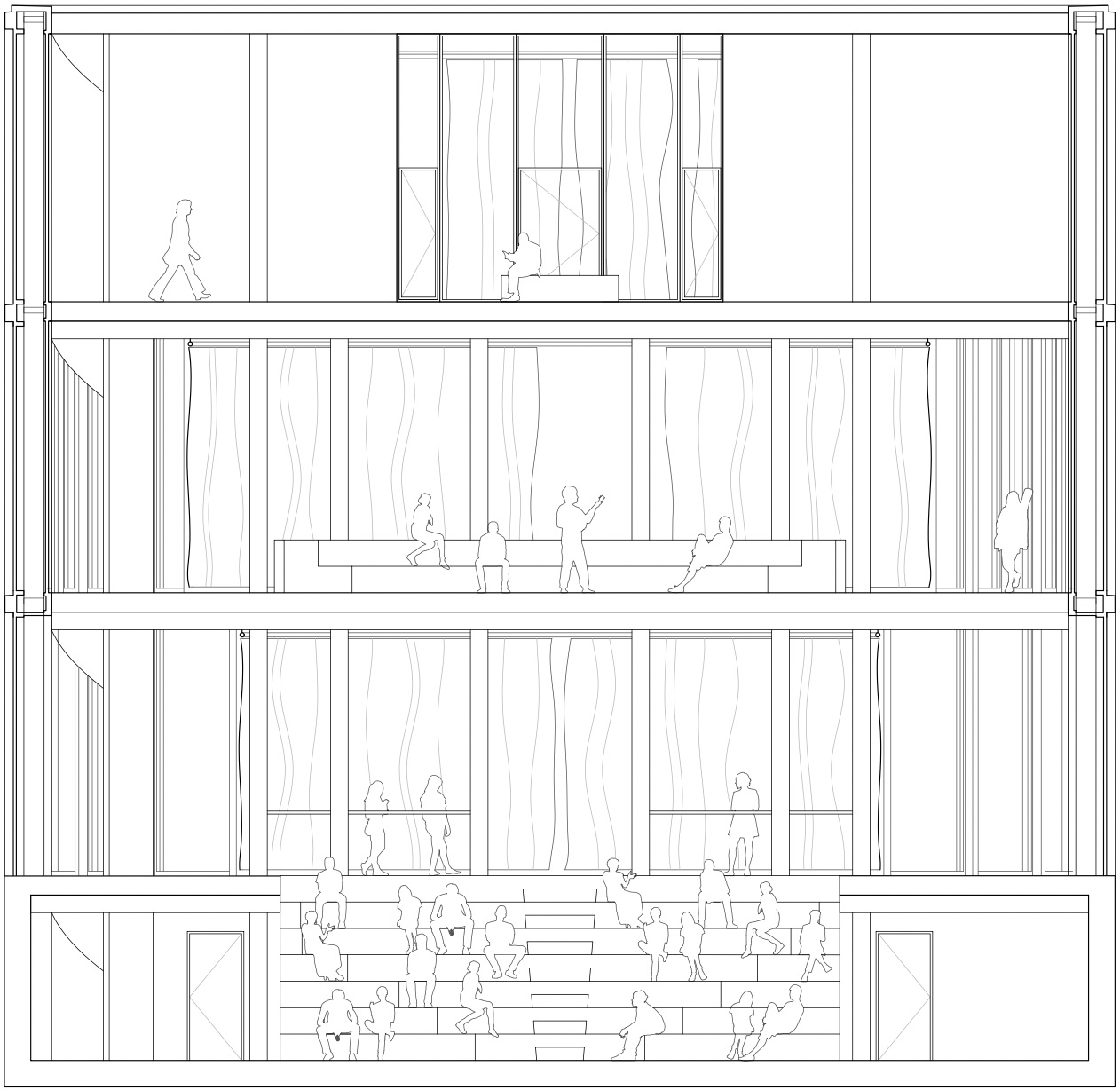

Section BB

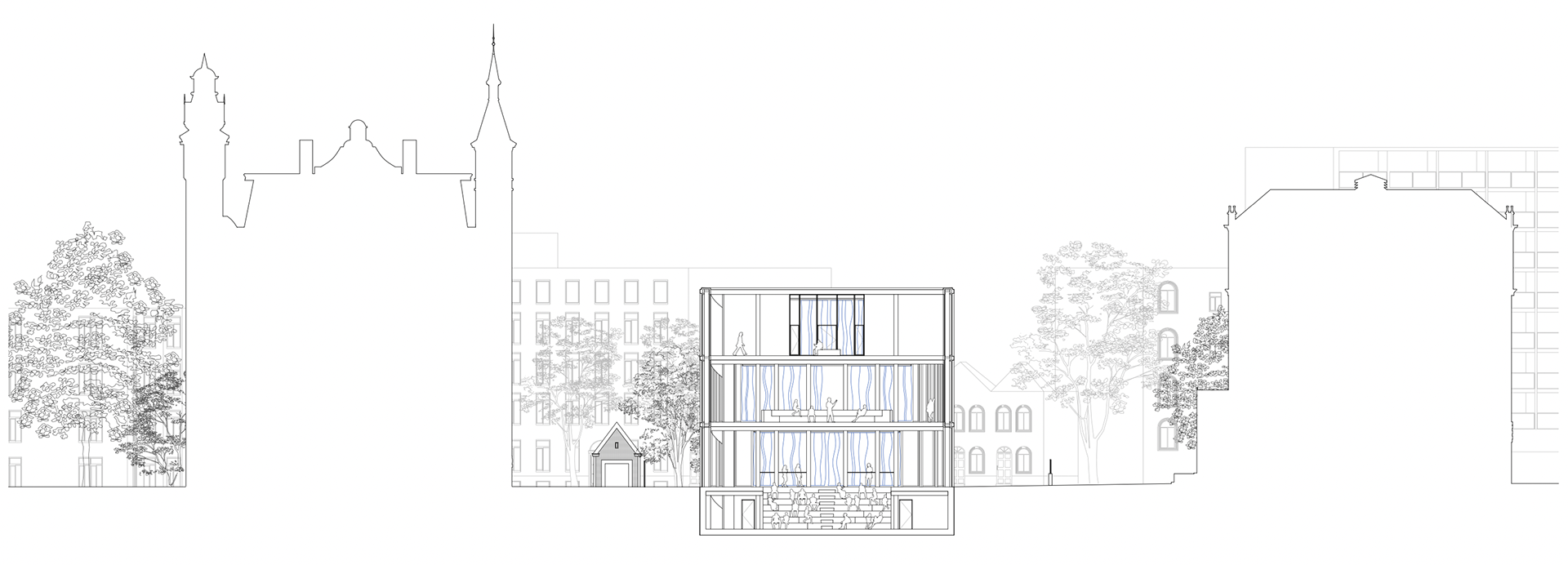

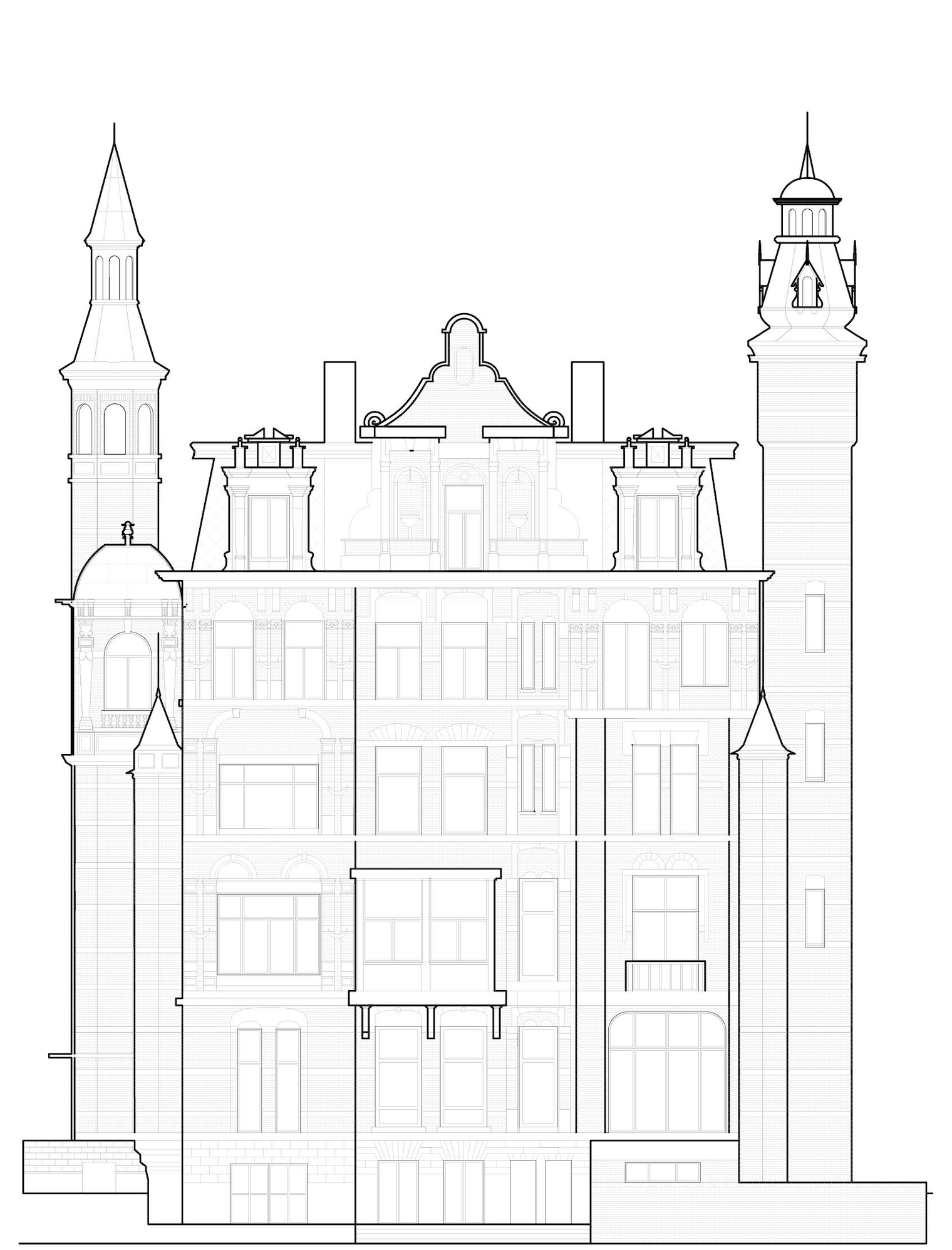

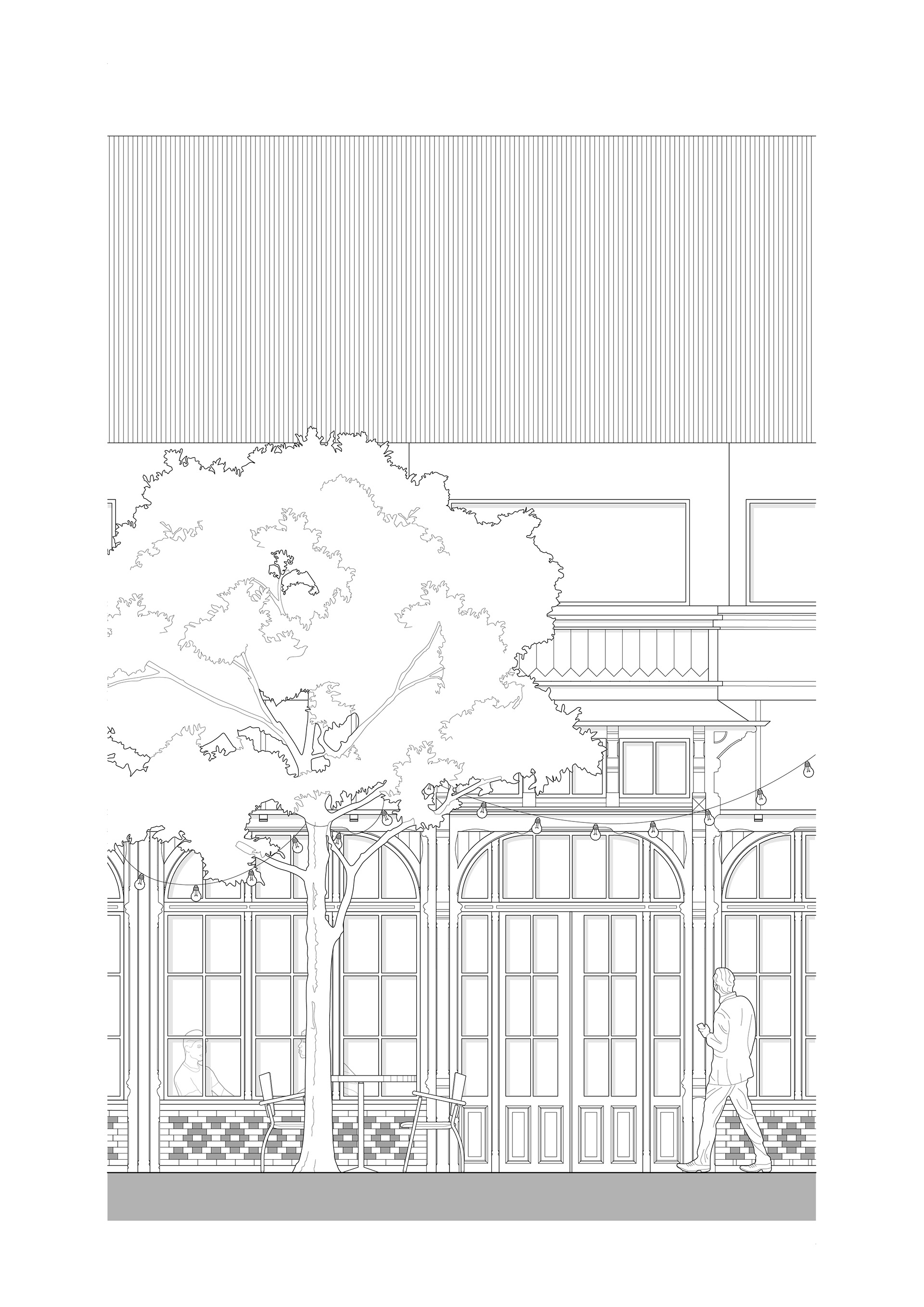

Facade drawing in context - street side

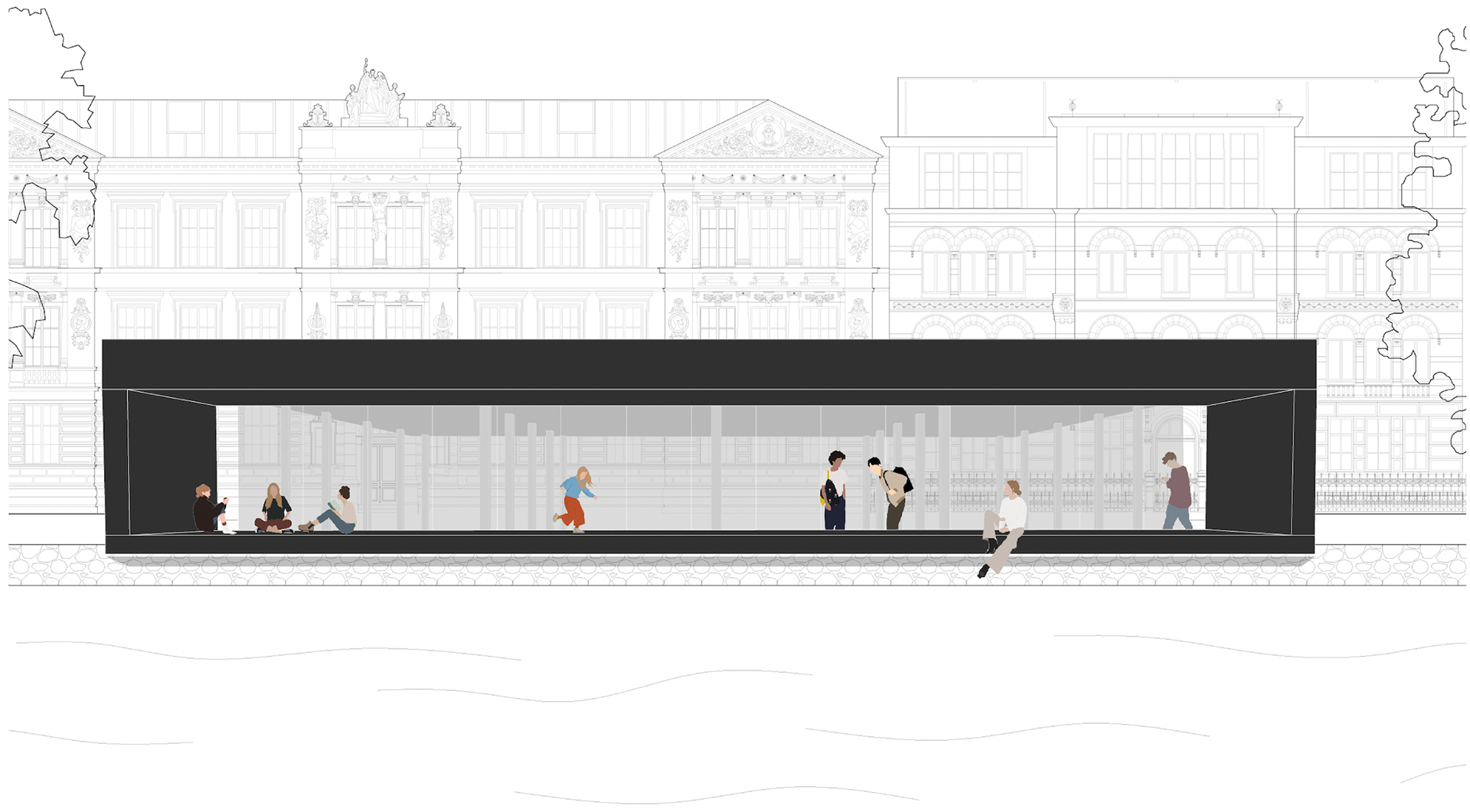

Atmospheric collage - Curtains open, theater as public space

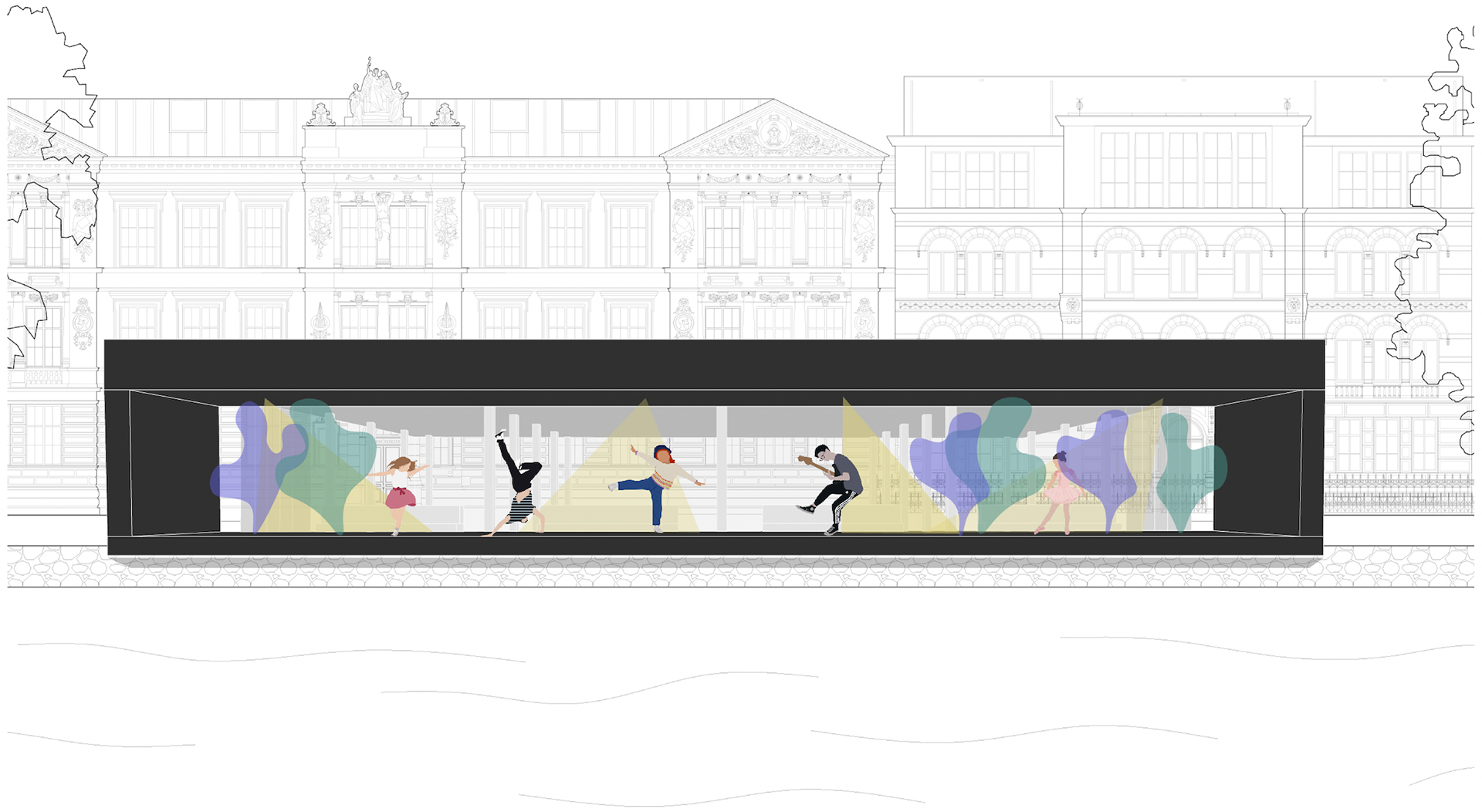

Atmospheric collage - Curtains closed, theater as stage

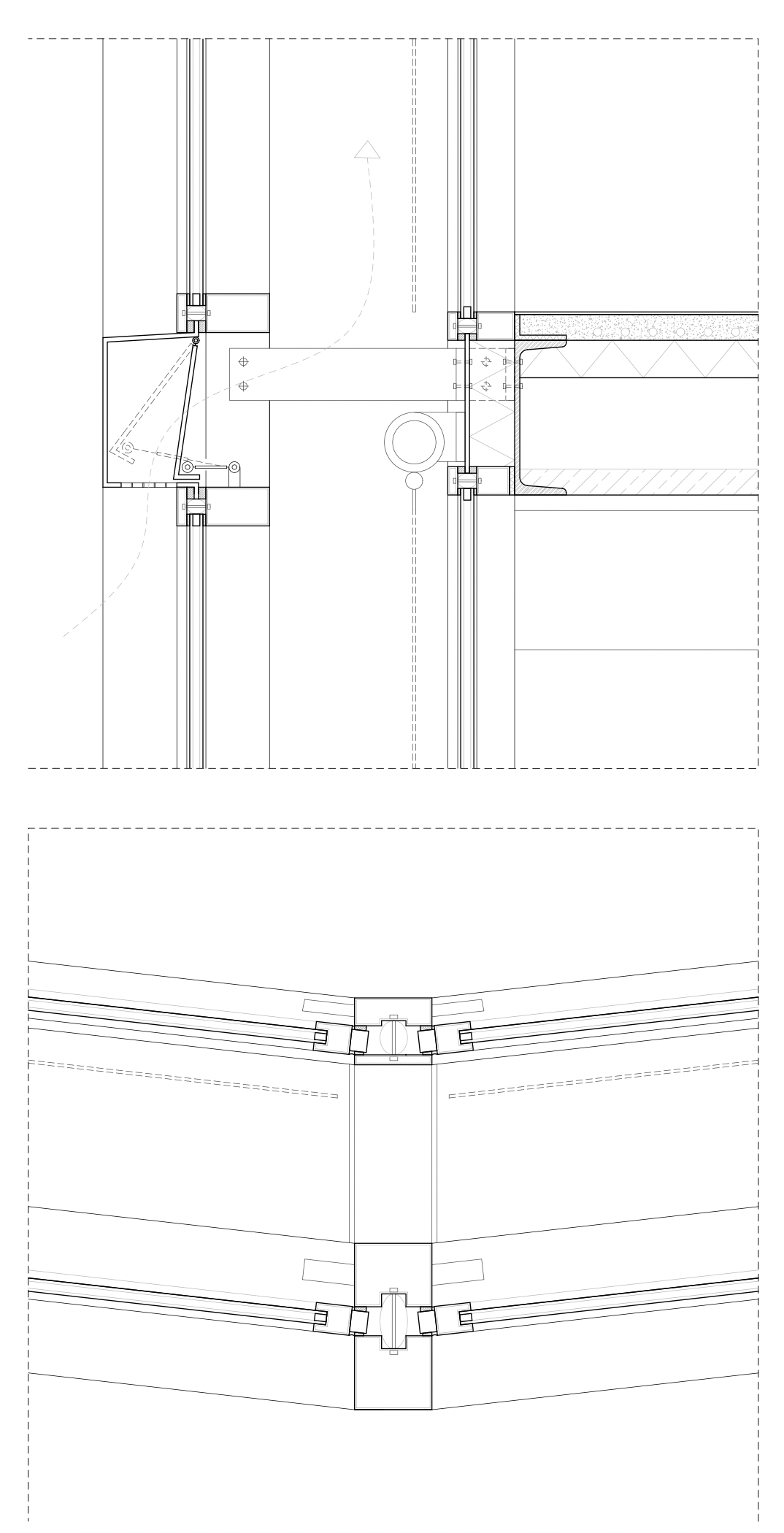

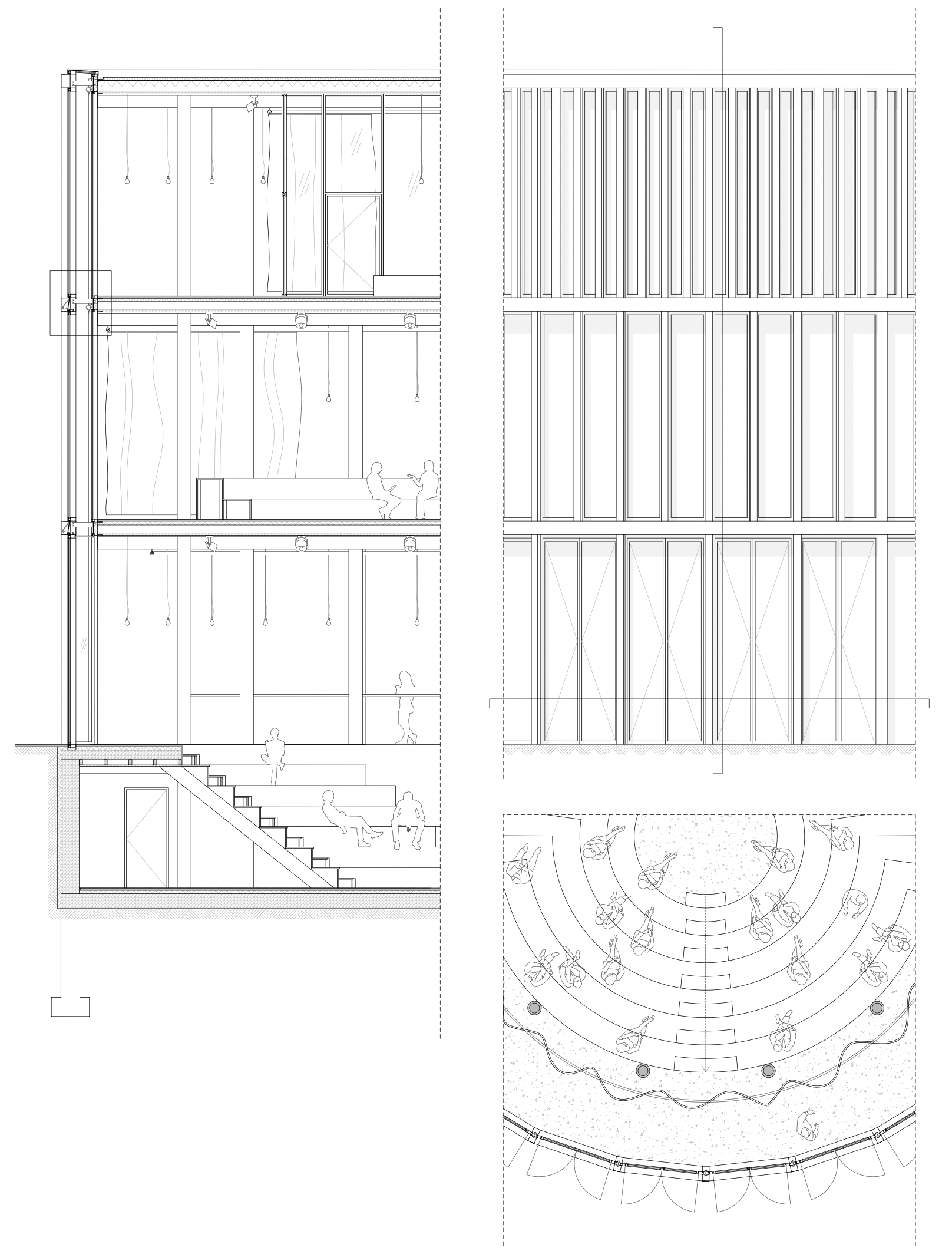

Facade drawing, vertical section and horizontal section - 1.33


Vertical section and horizontal section - 1.5

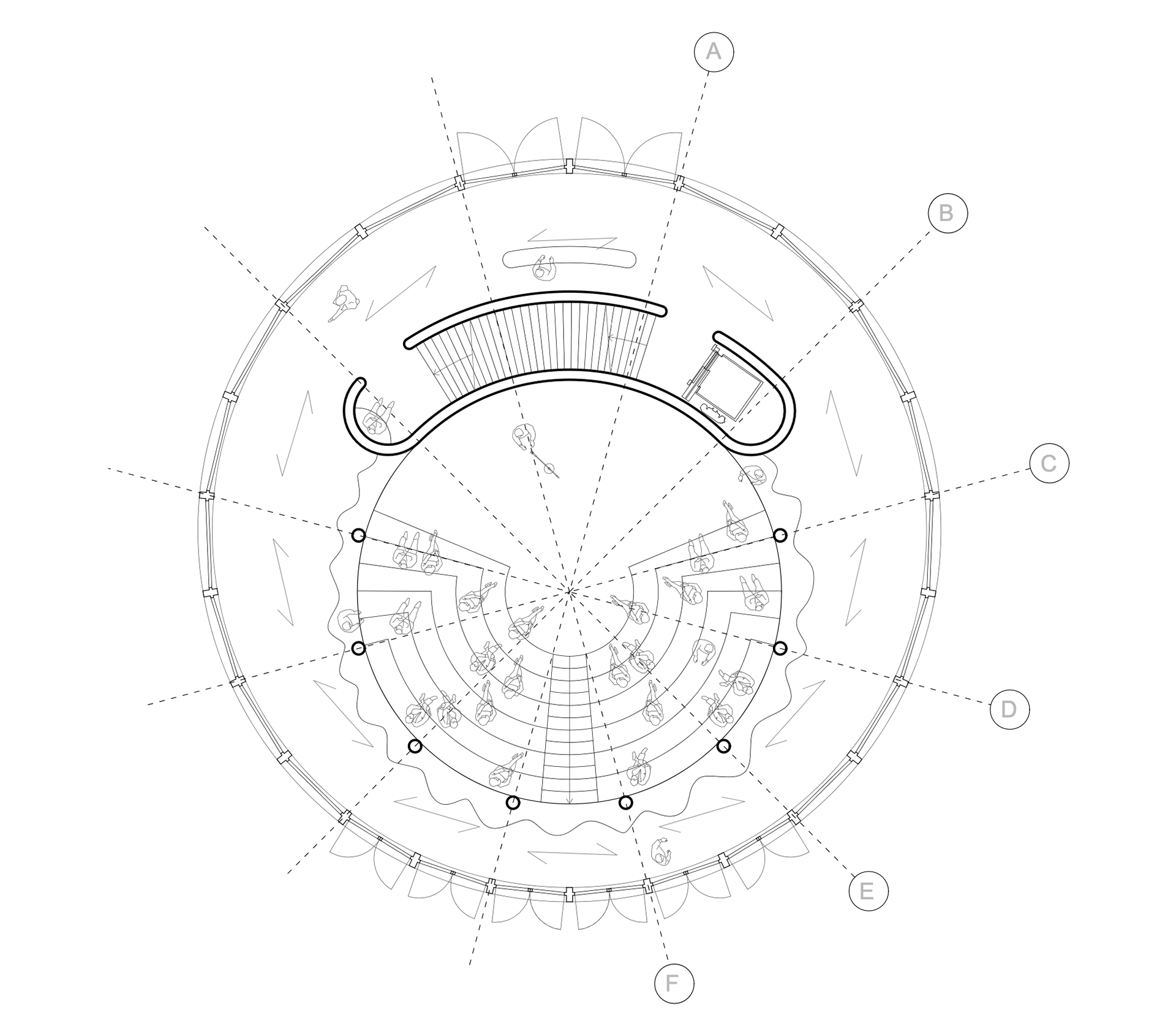

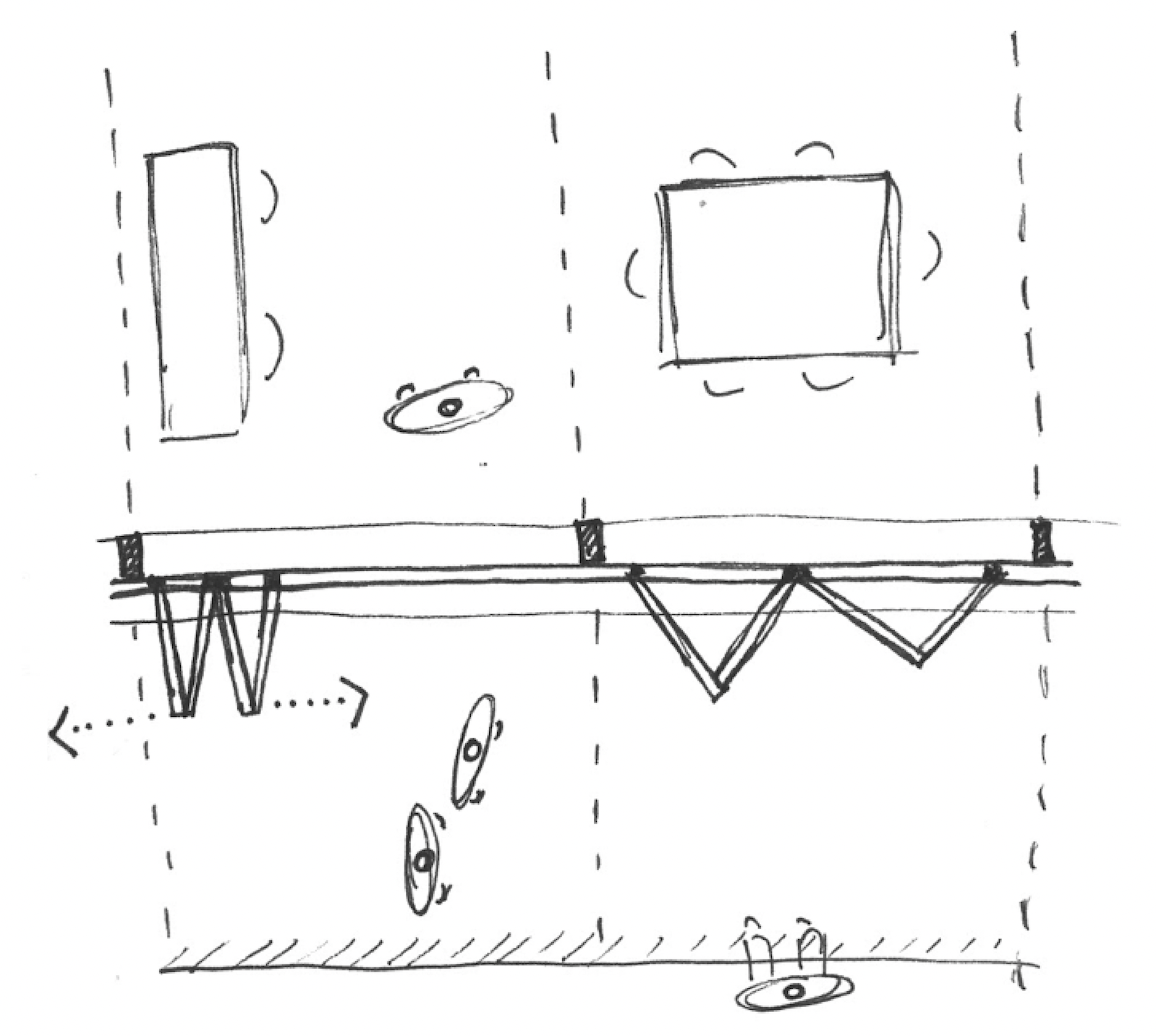

Construction concept - floor plan 00

  Process

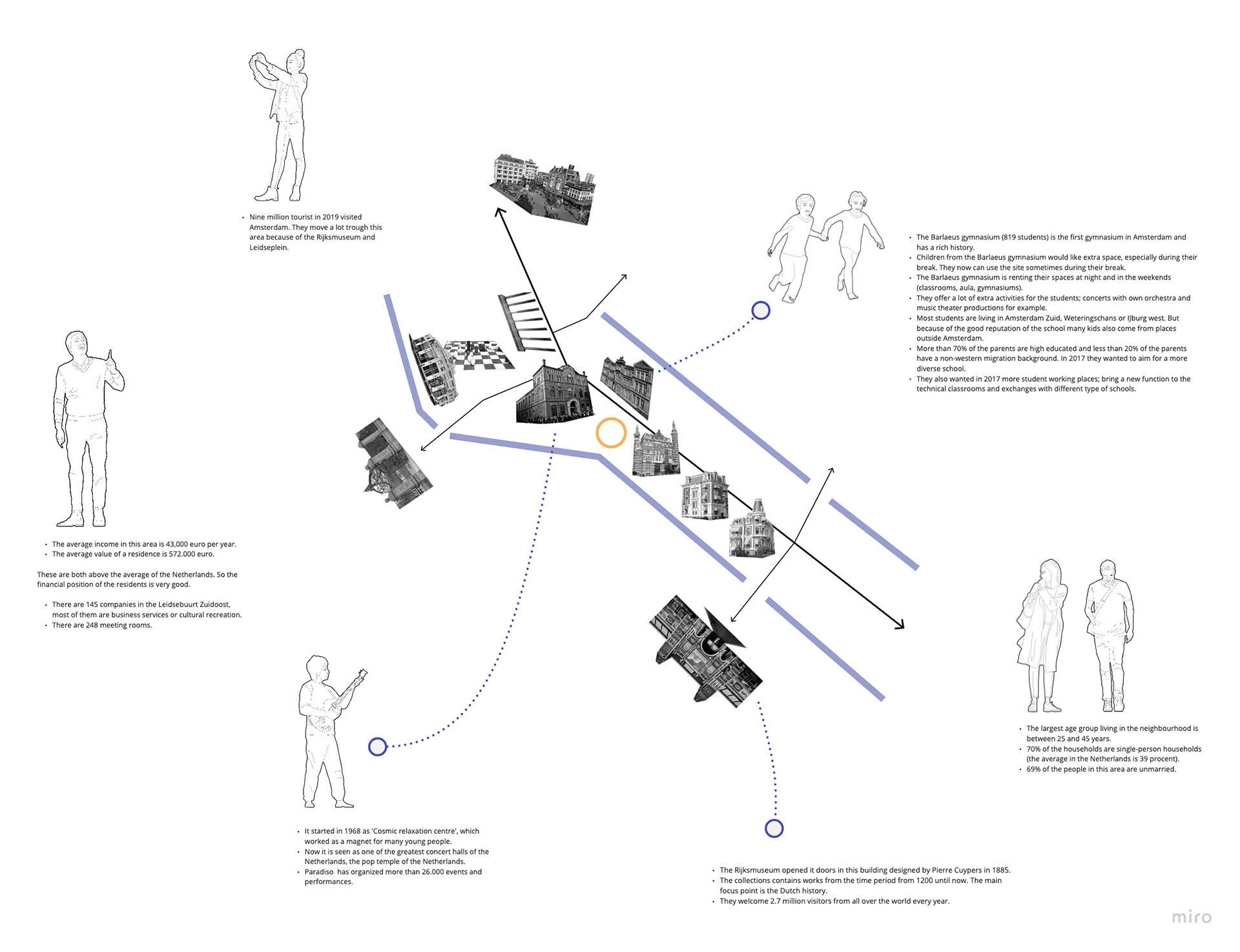

Context research overview - Weteringschans, Amsterdam

Students of the Barlaeus School squatting 't landje - Jesper Boot, 2018

Students of the Barlaeus School squatting 't landje - Jesper Boot, 2018

Warming up workshop - Public stage as performance space

Warming up workshop - Public stage as break spot for Barlaeus students

Warming up workshop - Reference: Urban Podium, Atelier Kempe Thill​​​​​​​, Rotterdam

First concept - public stage with indoor workshop space - closed vs. open

First concept - flexible facade

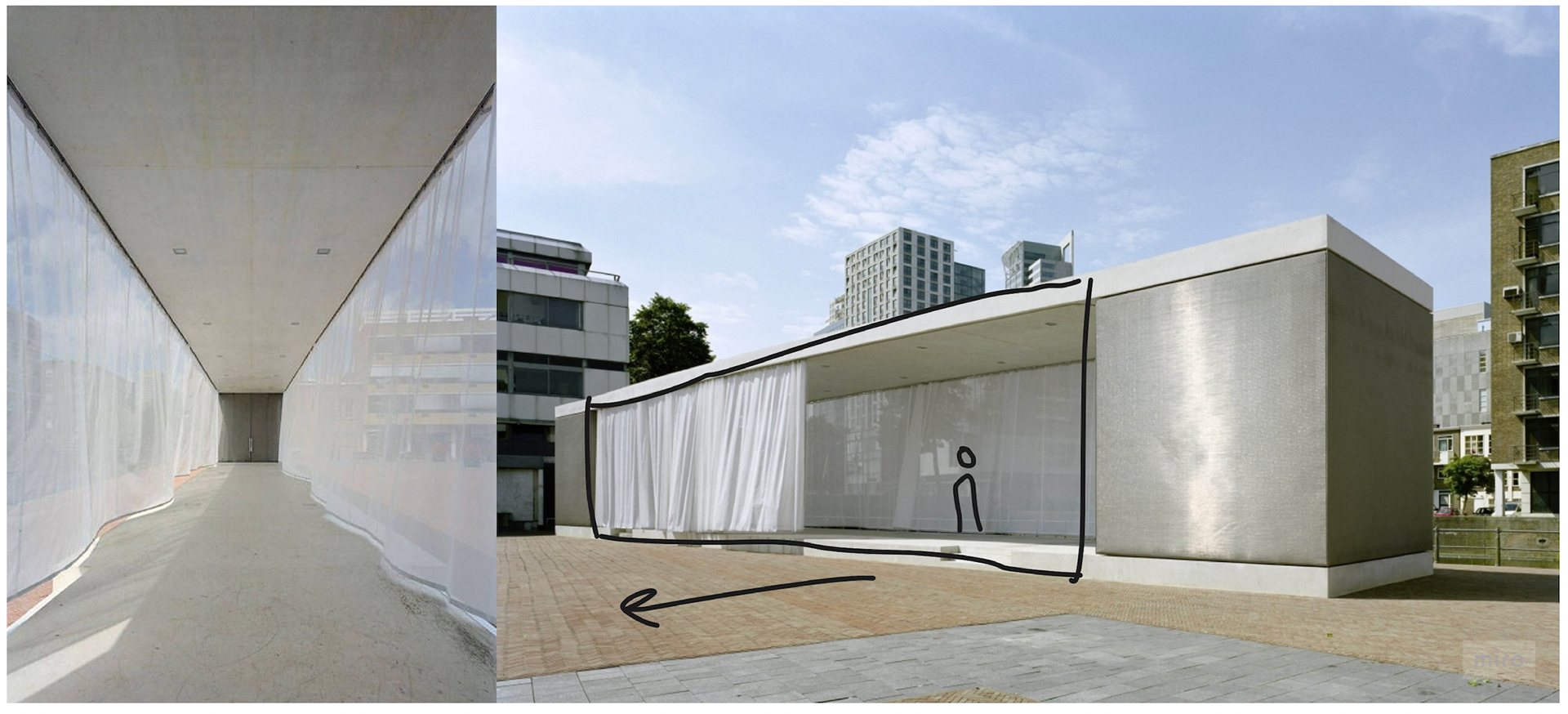

Reference - Theater building, L’Escaut Architectures & RAUM Architects

Concept - theater for the city

Concept in context - theater for the city

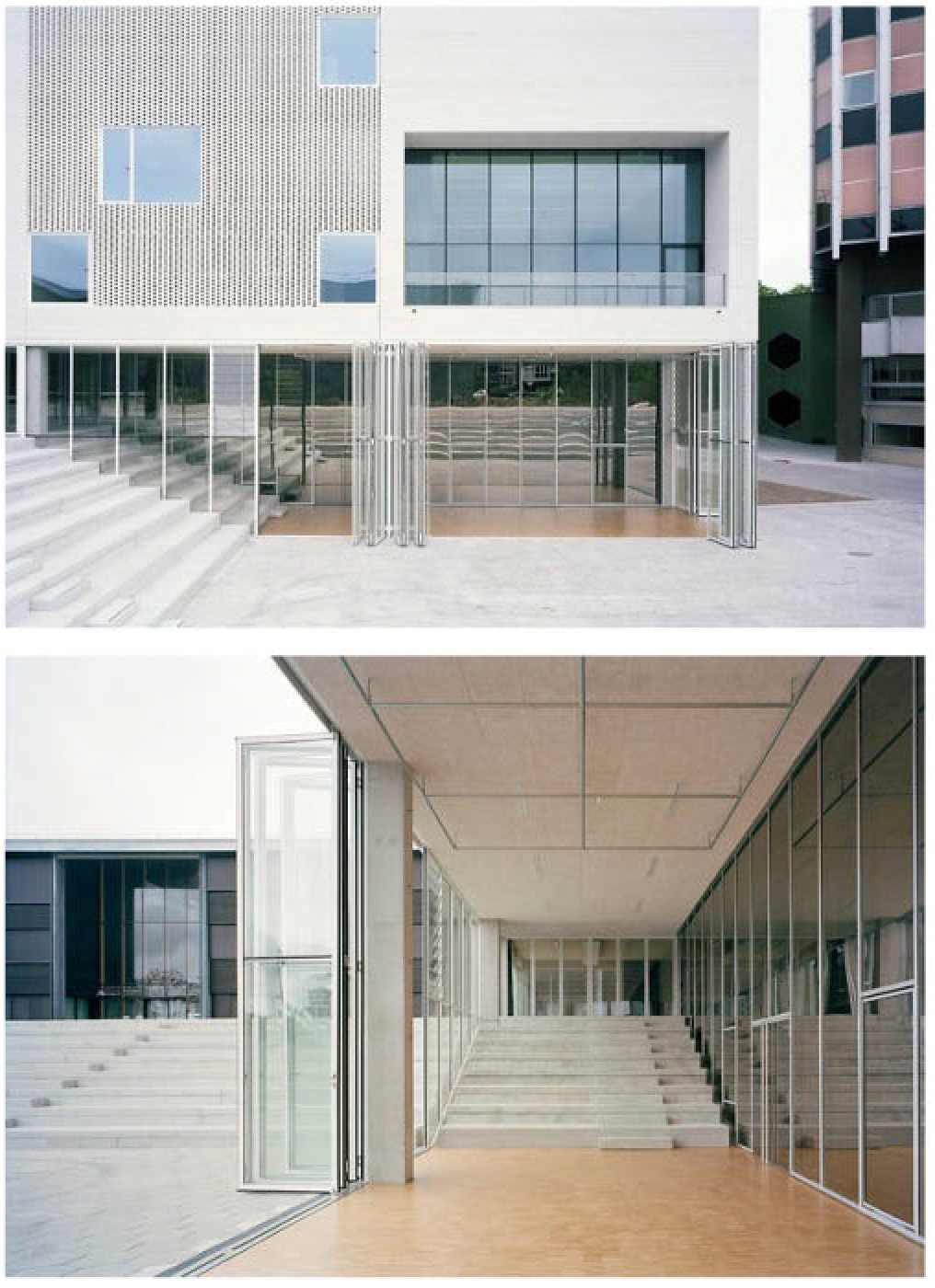

Reference - Teatro Oficina, Lina Bo Bardi & Edson Elito

First version design - volume study

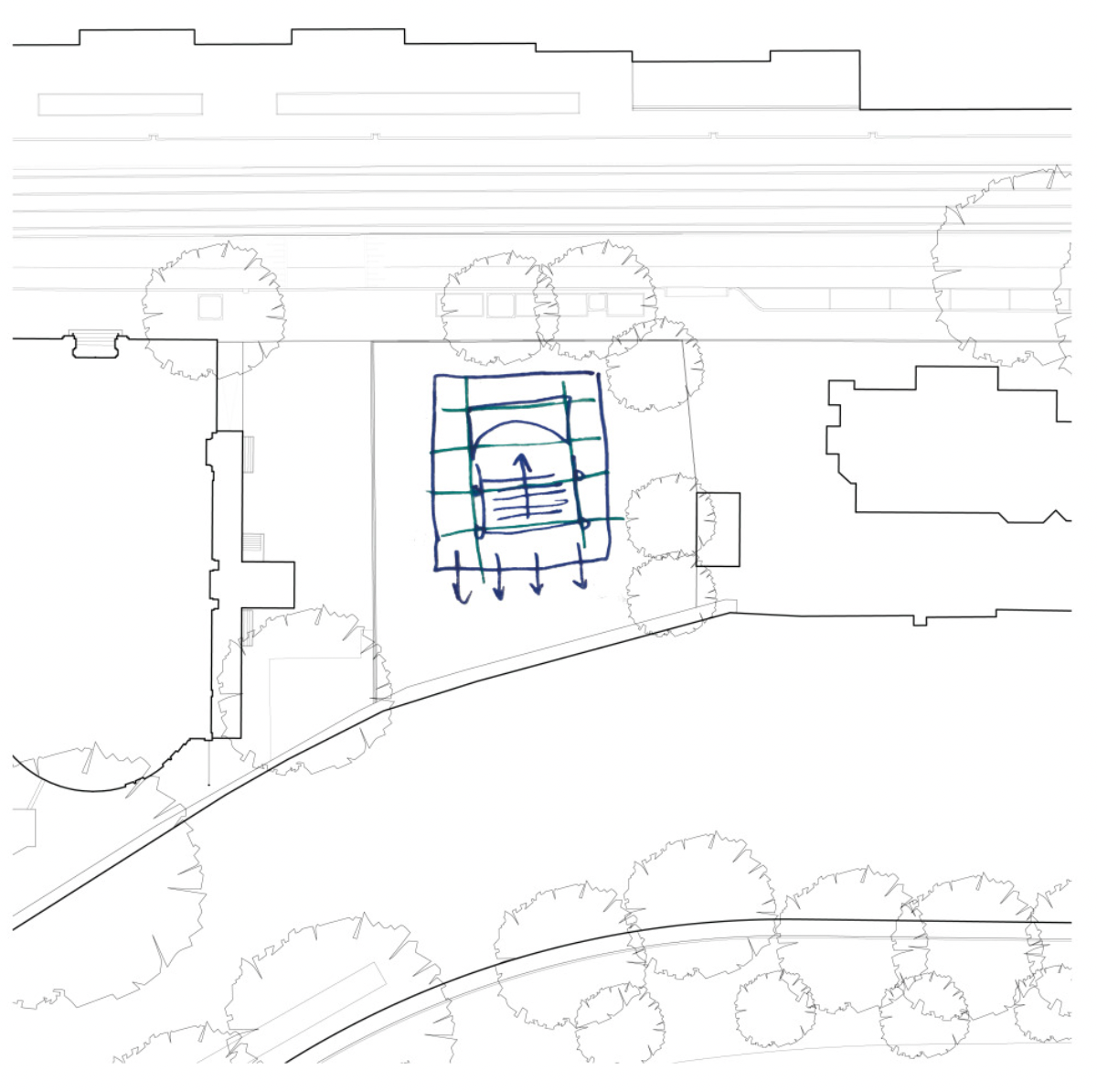

First version design - Floor plan 00

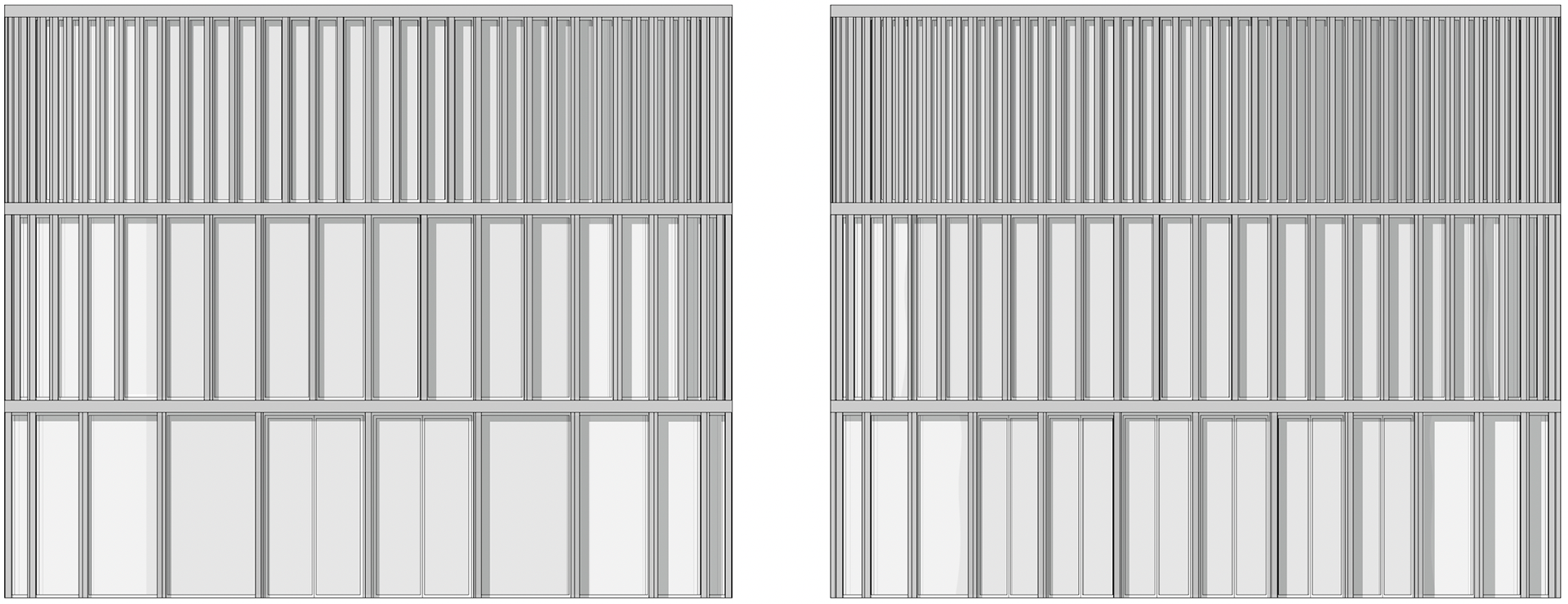

Facade study

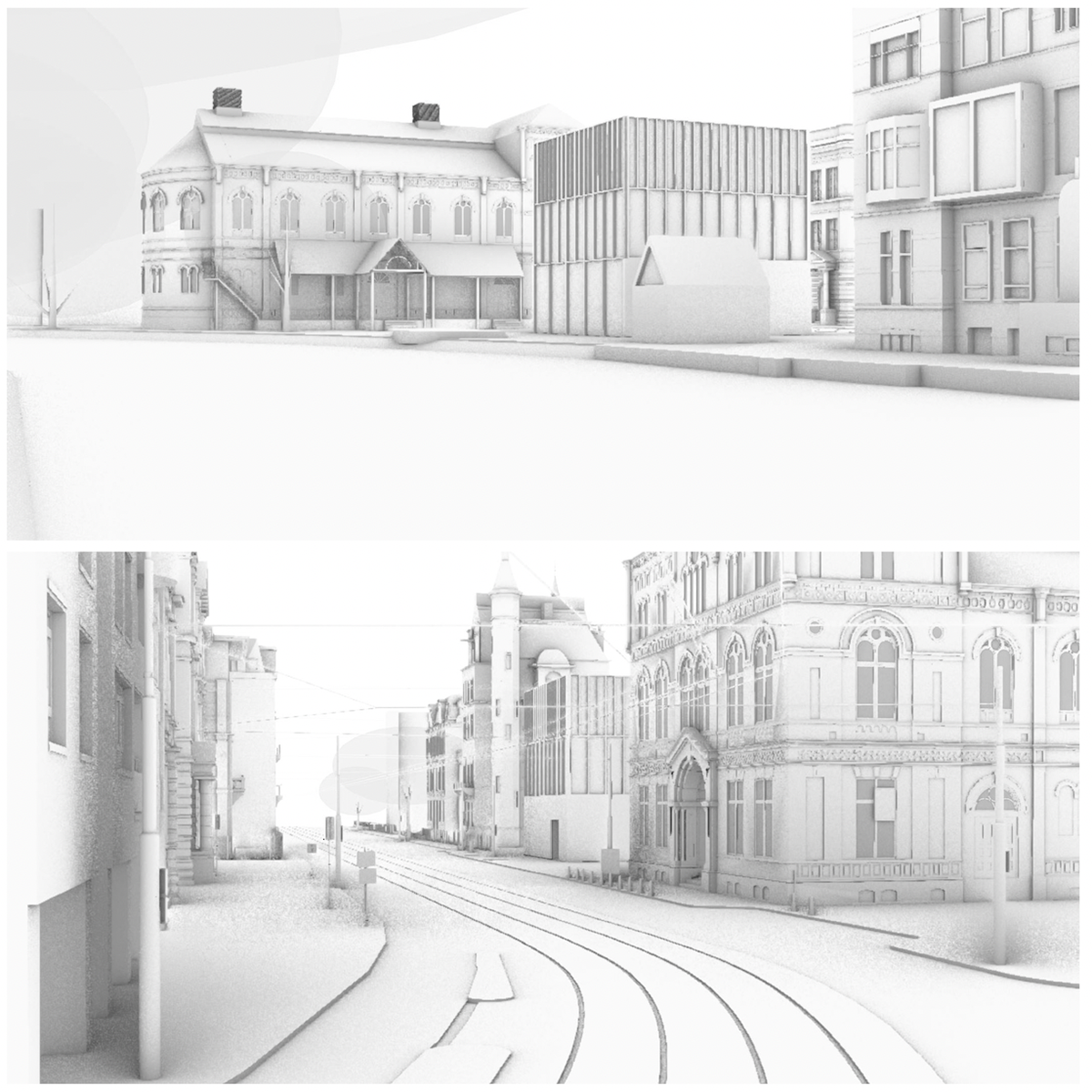

Facade study in street view

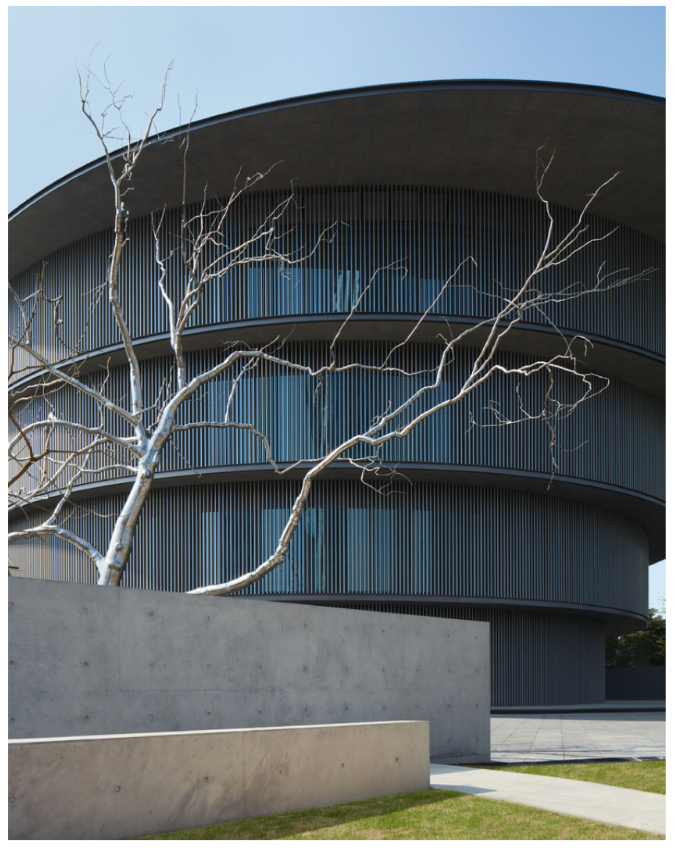

Reference - Art Museum, Tadao Ando

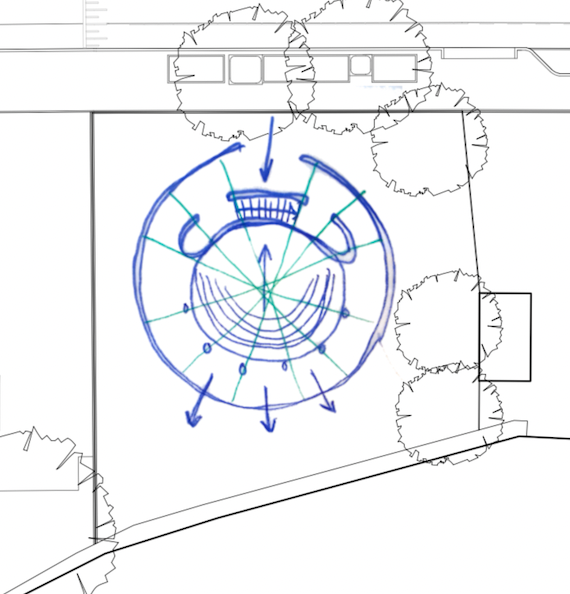

New concept - round floor plan

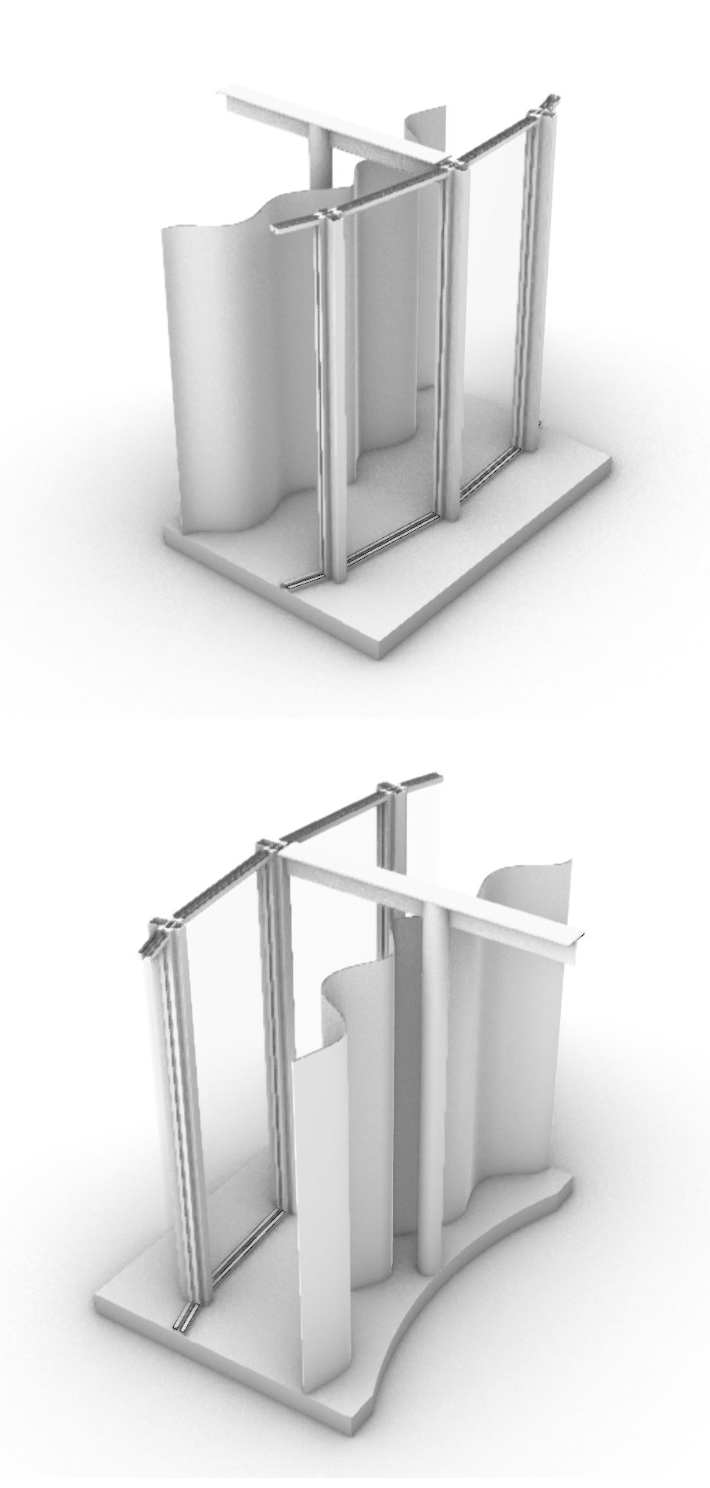

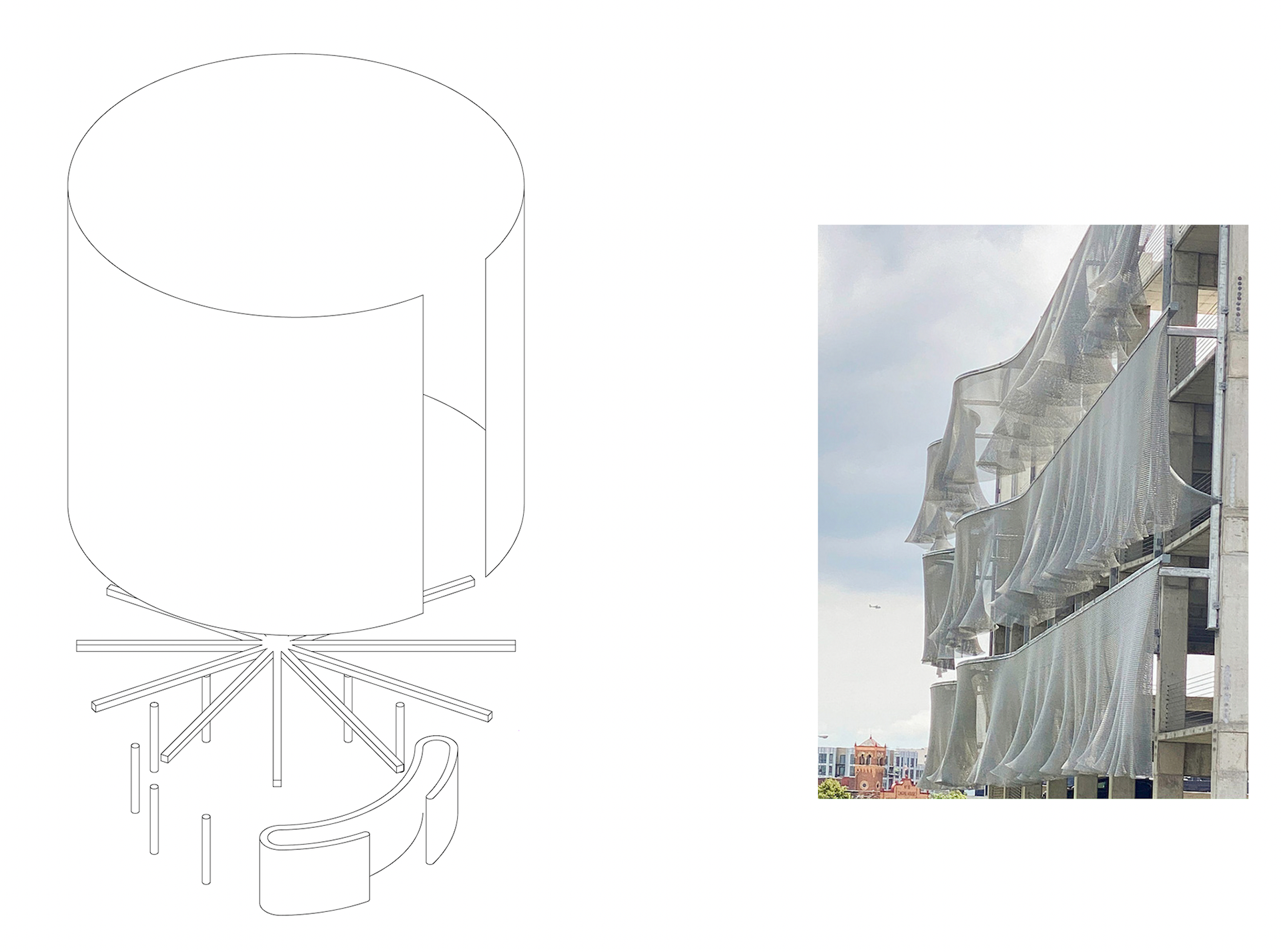

Concept of the 'curtain wall' for facade & concept construction

Round concept - facade concept

Round concept - volume study in context

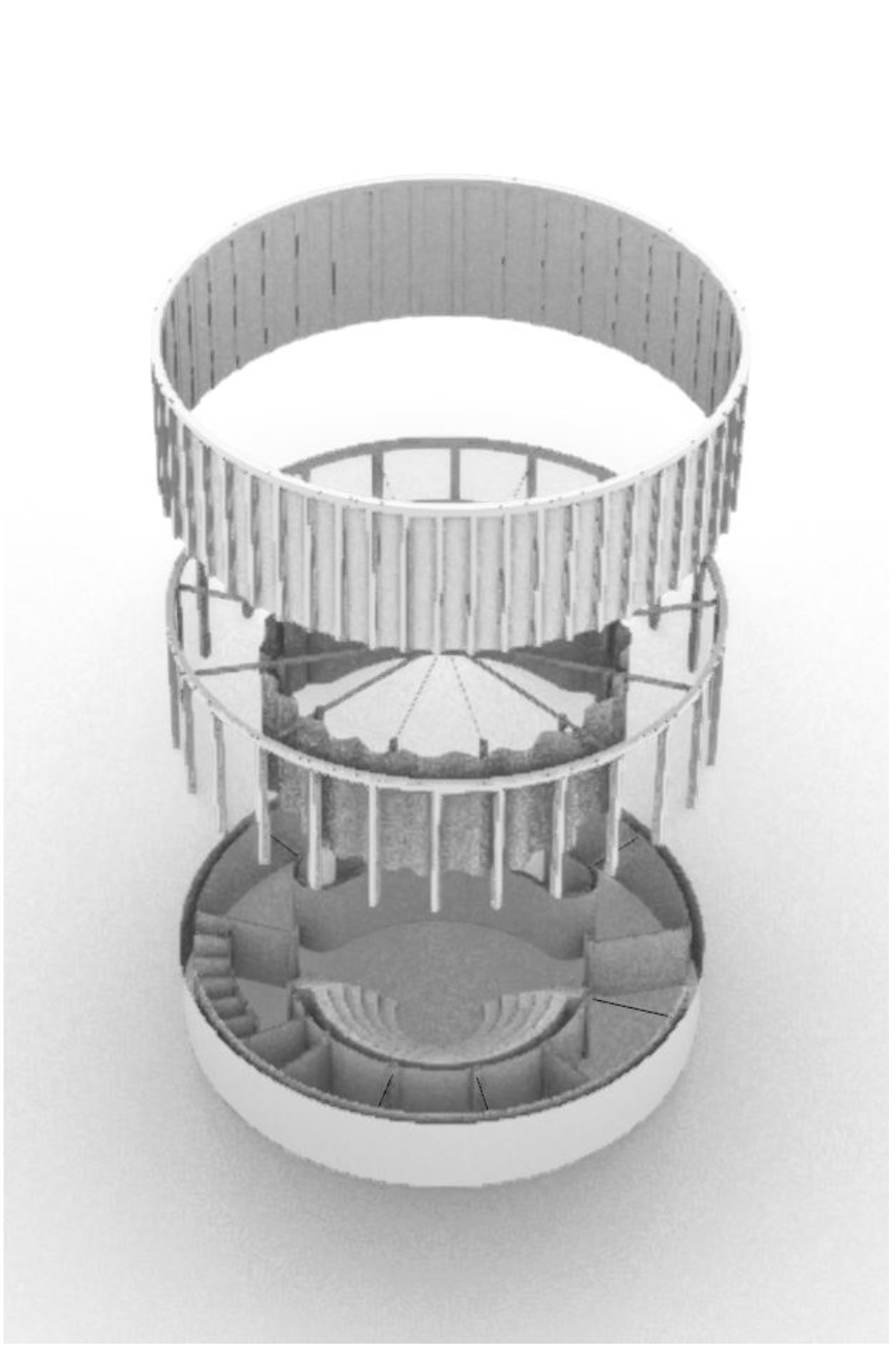

Construction axonometric drawing

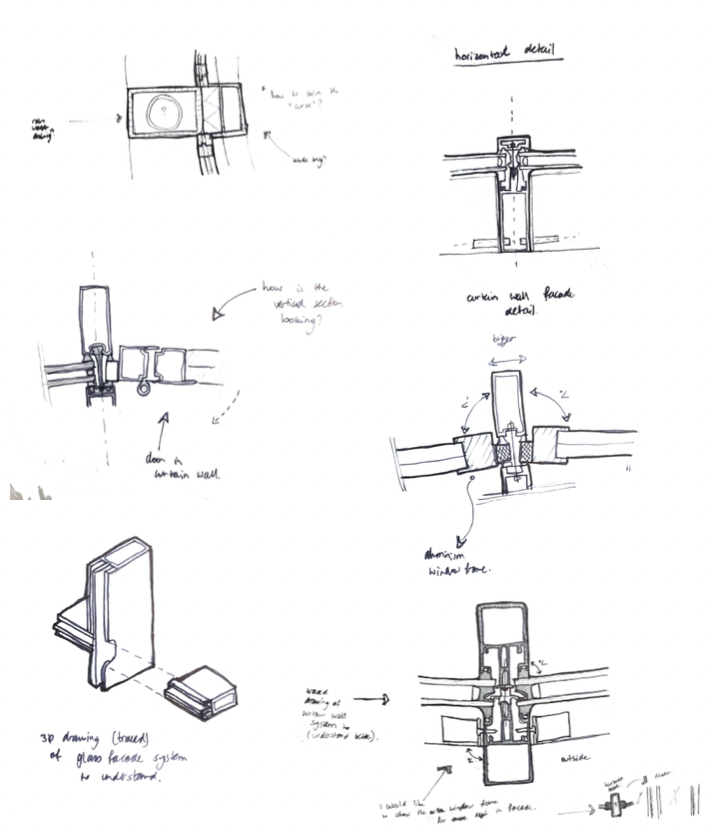

3D facade fragment

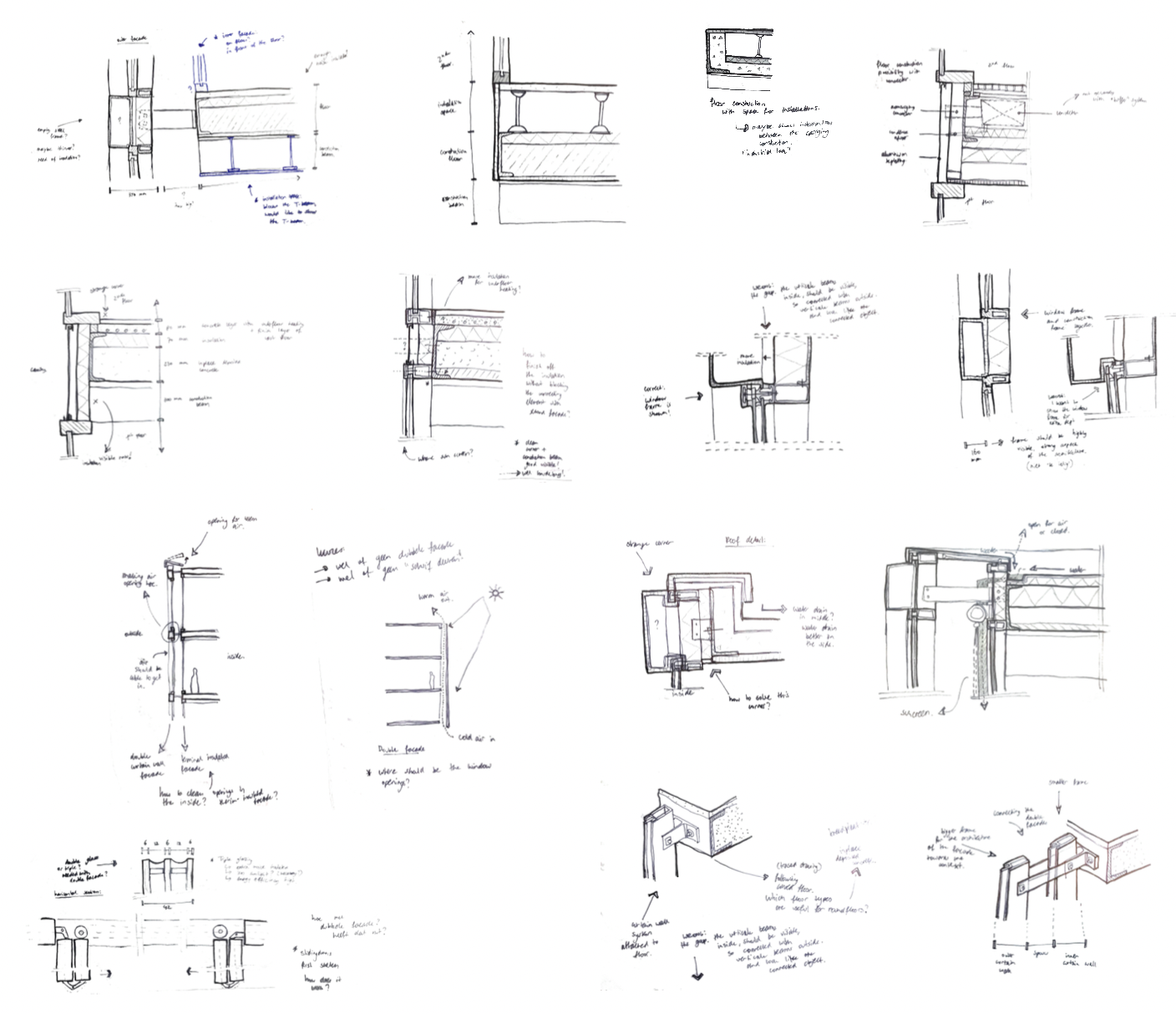

Building construction - design research

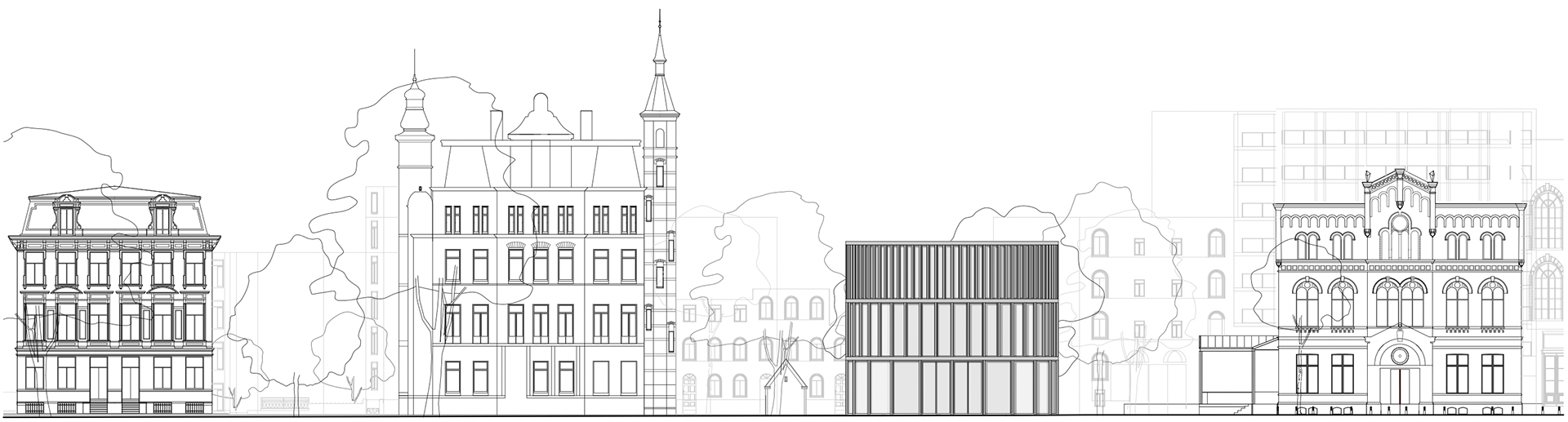

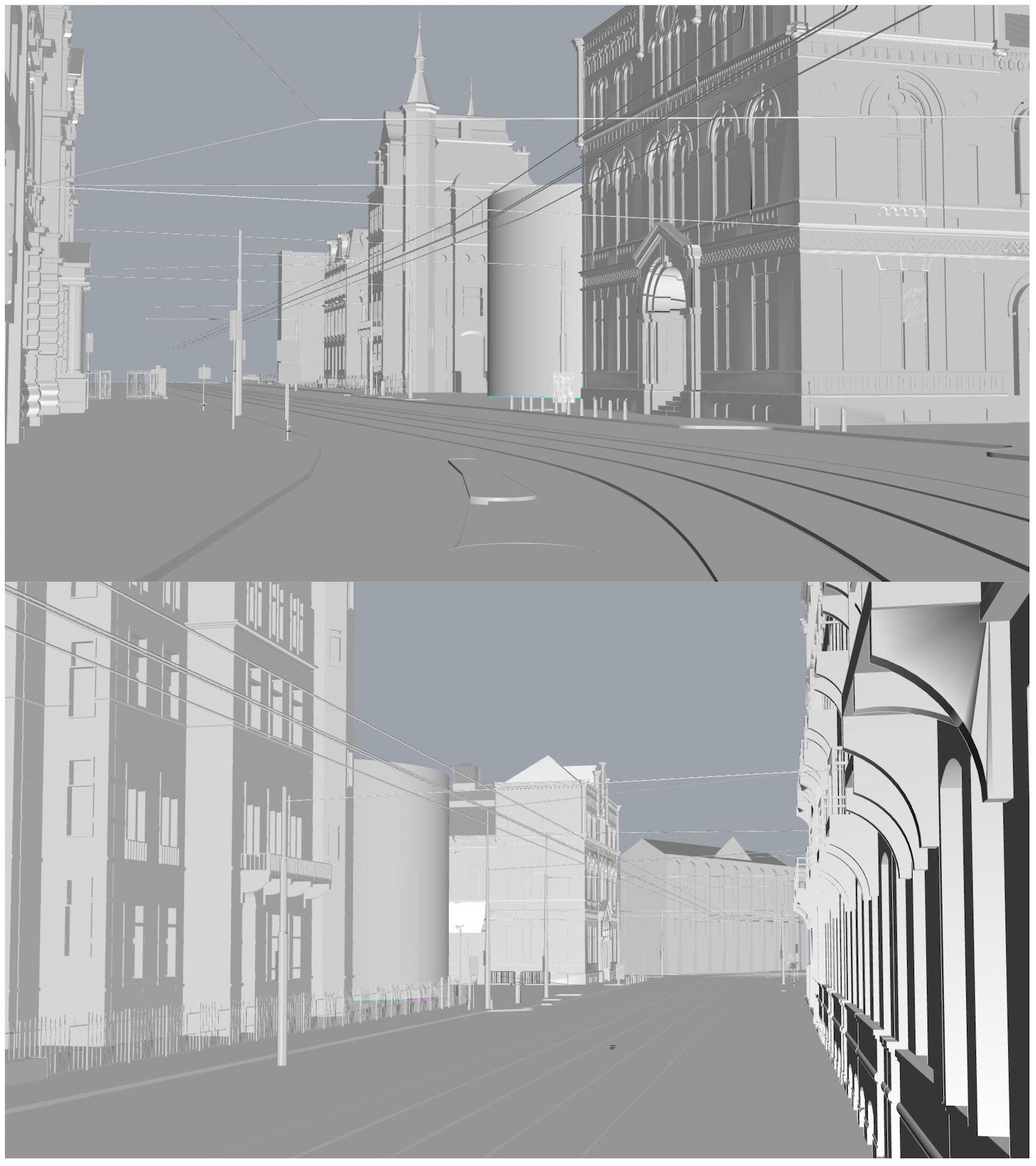

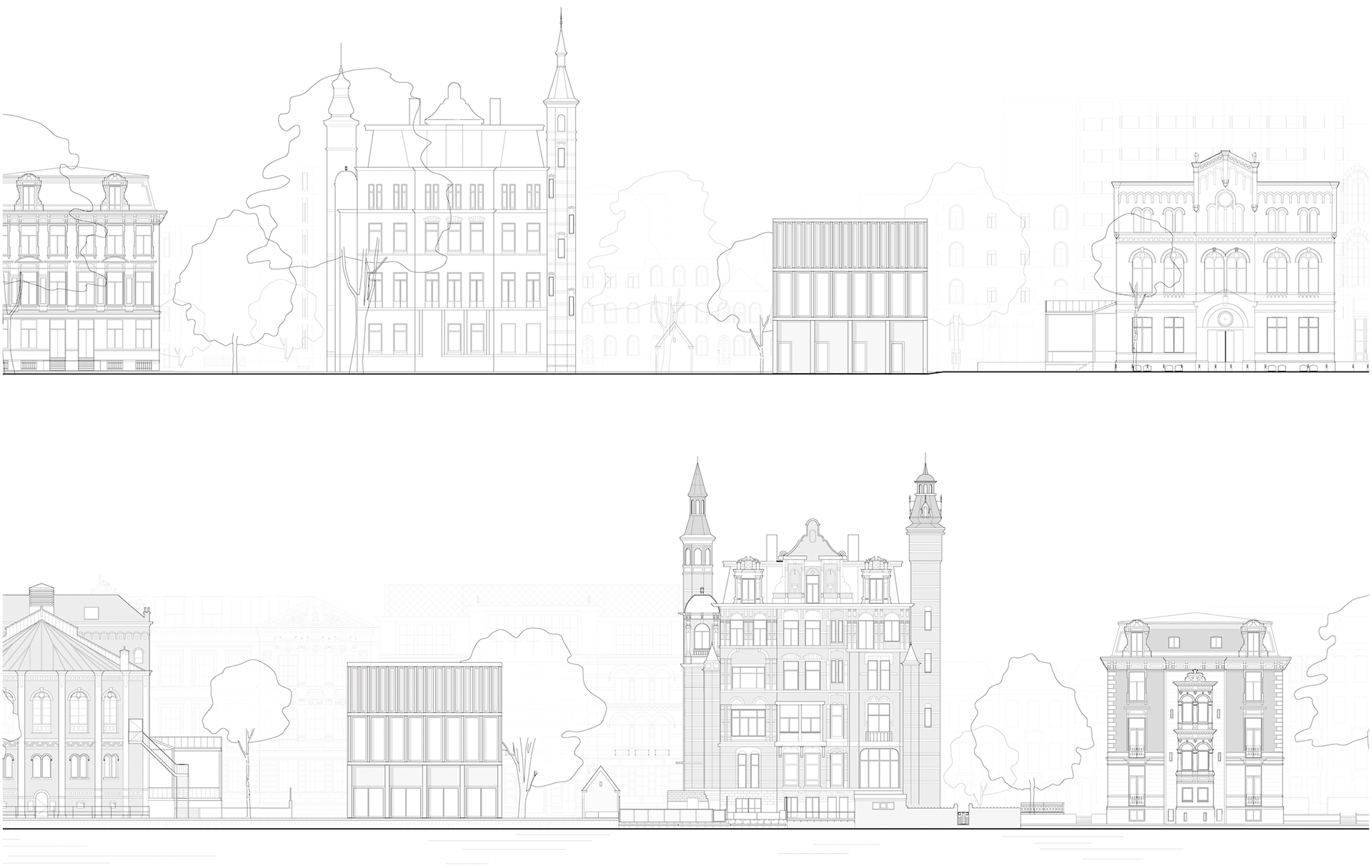

Context drawing

Weteringschans 10 - North West - together with Rui Wei & Tao Qiyang

Weteringschans 10 - North East - together with Rui Wei & Tao Qiyang

Weteringschans 10 - South East - together with Rui Wei & Tao Qiyang

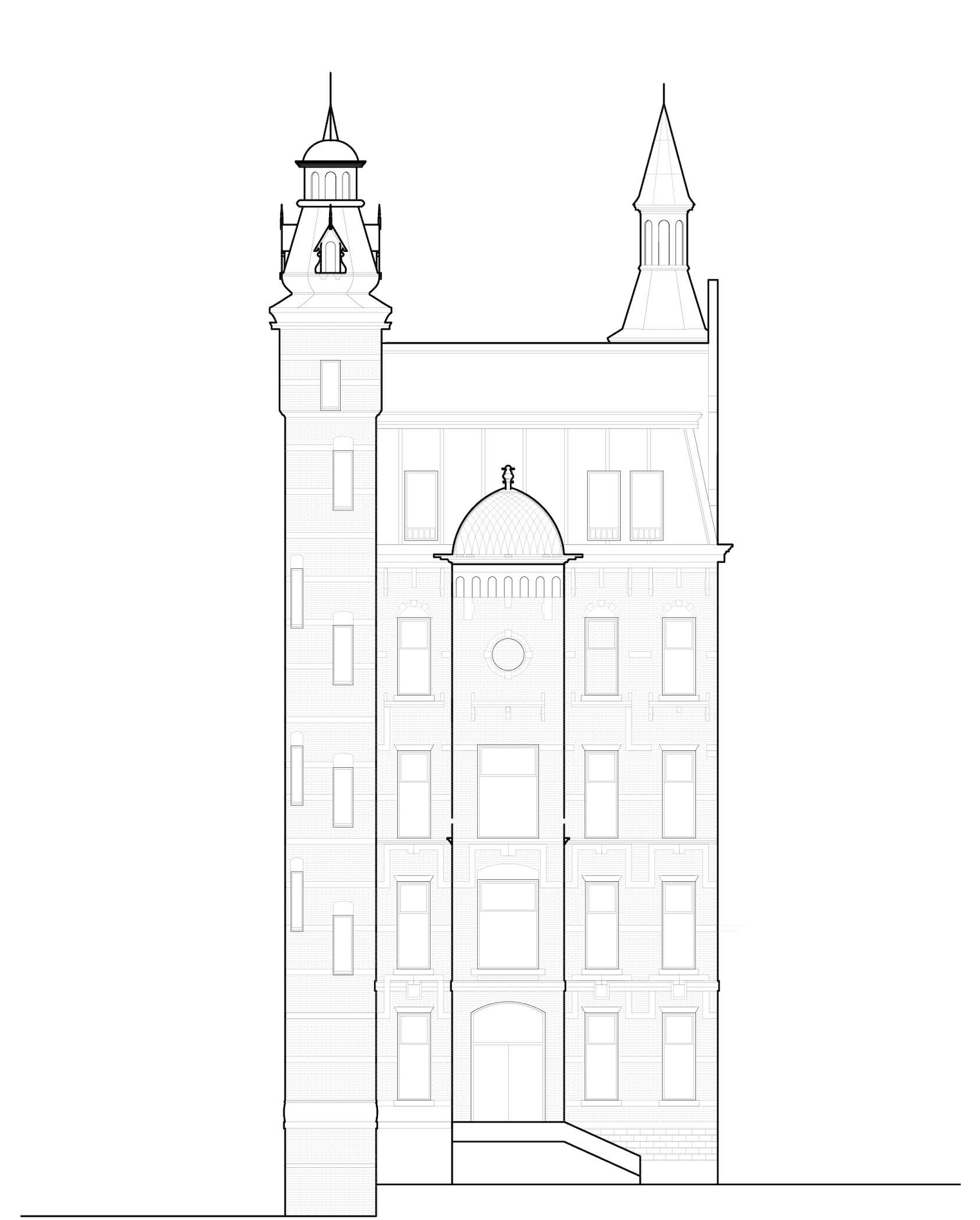

Weteringschans 10 - South West - together with Rui Wei & Tao Qiyang

  Embedded Narrative

Starting point: Rijkskas concept - Space & Matters architects

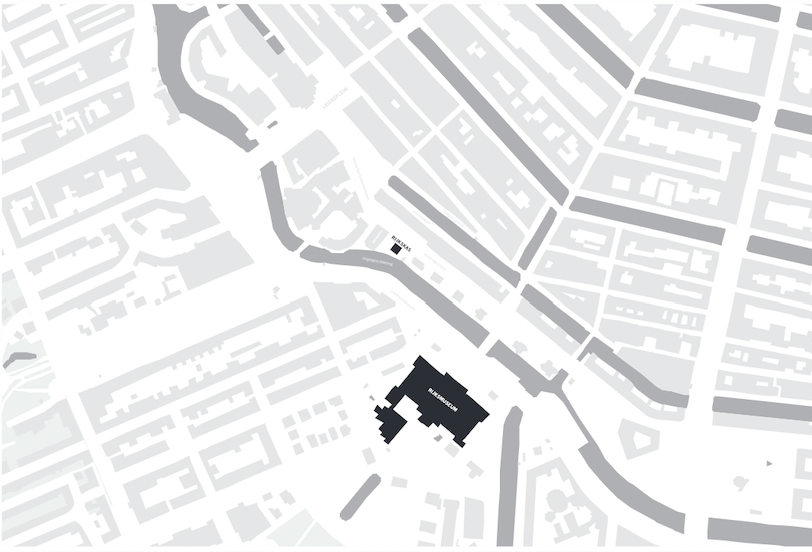

Location Rijksmuseum & Rijkskas

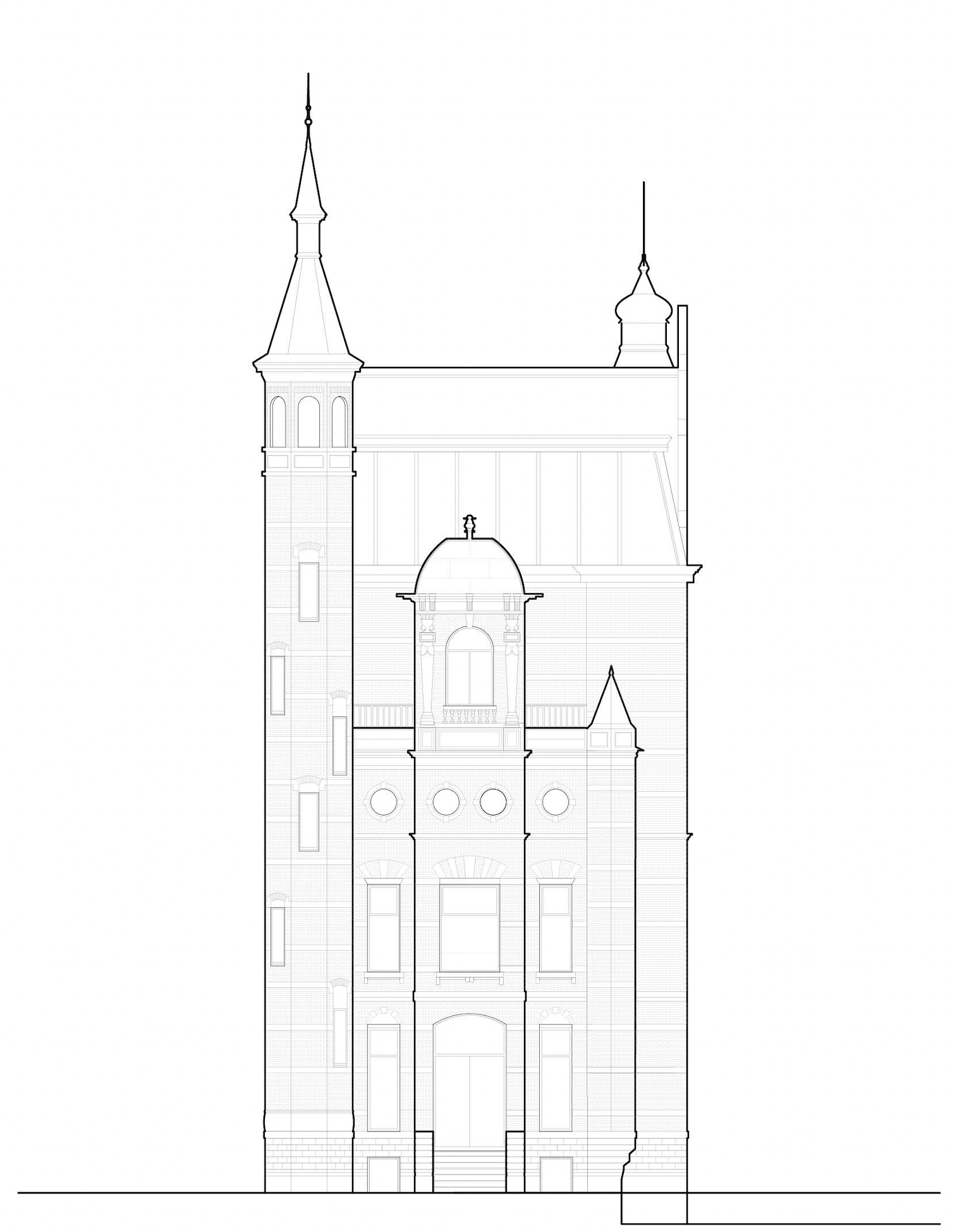

P.J.H. Cuypers - Rijksmuseum, Amsterdam, 1905

"The State Treasury, a unique concept that provides the Rijksmuseum and the city of Amsterdam the opportunity to distinguish themselves culinarily, art historically, educationally, architecturally, and technologically. The State Treasury is more than just an icon that enhances the surroundings. Visitors to the treasury are surprised with living history and culturally edible heritage. The State Treasury is Amsterdam's showcase for conveying its vision of urban agriculture and healthy nutrition."
Wetering Verbetering, depot.wur.nl (translated from Dutch)

Reference - Crystal Palace, 1851

Our concept for Rijkskas - own product, made together with Sha Vaseghi

  Reference project

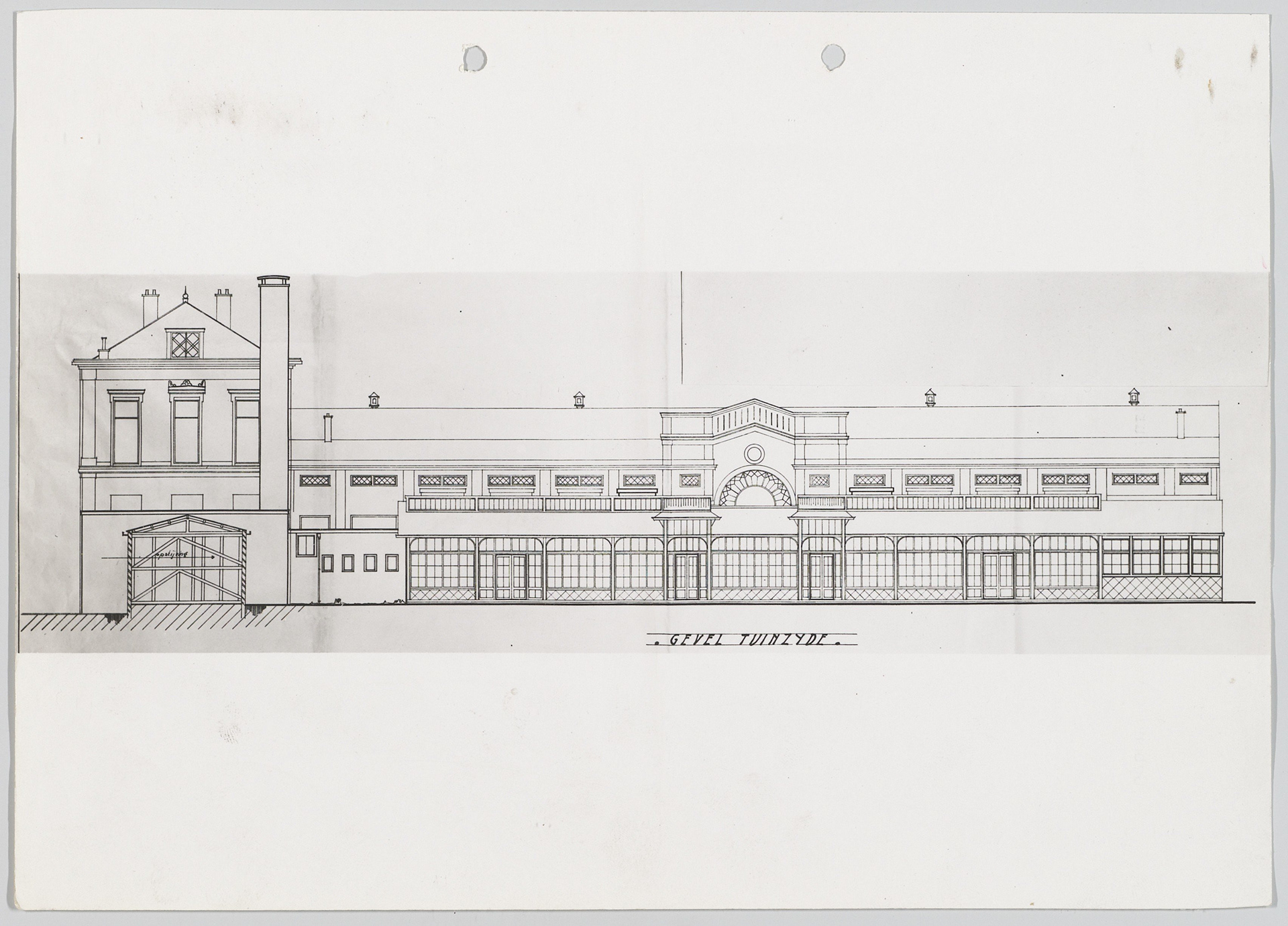

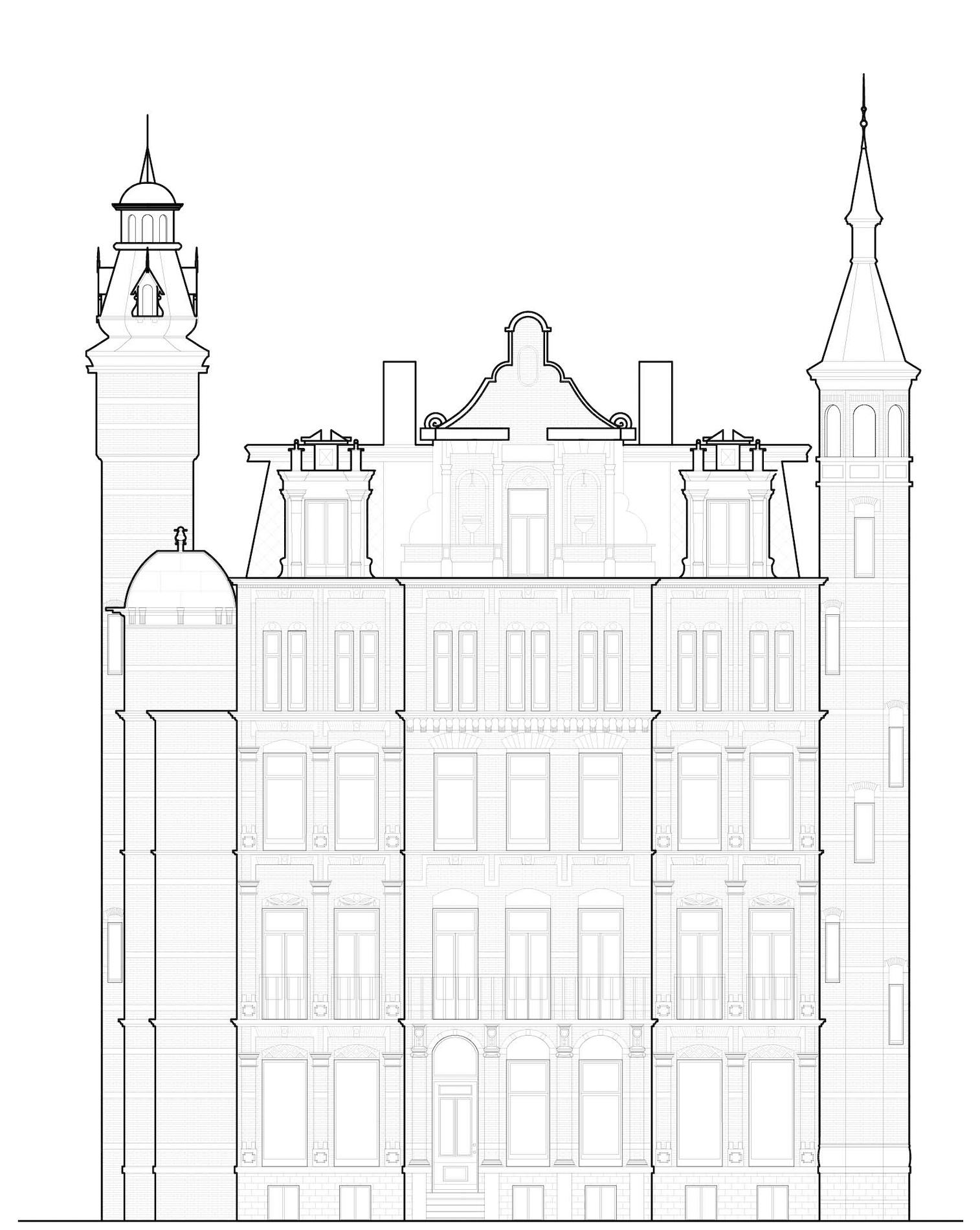

Facade drawing, garden side - de Plantage, o.a. Gerlof Bartholomeus Salm, 1940

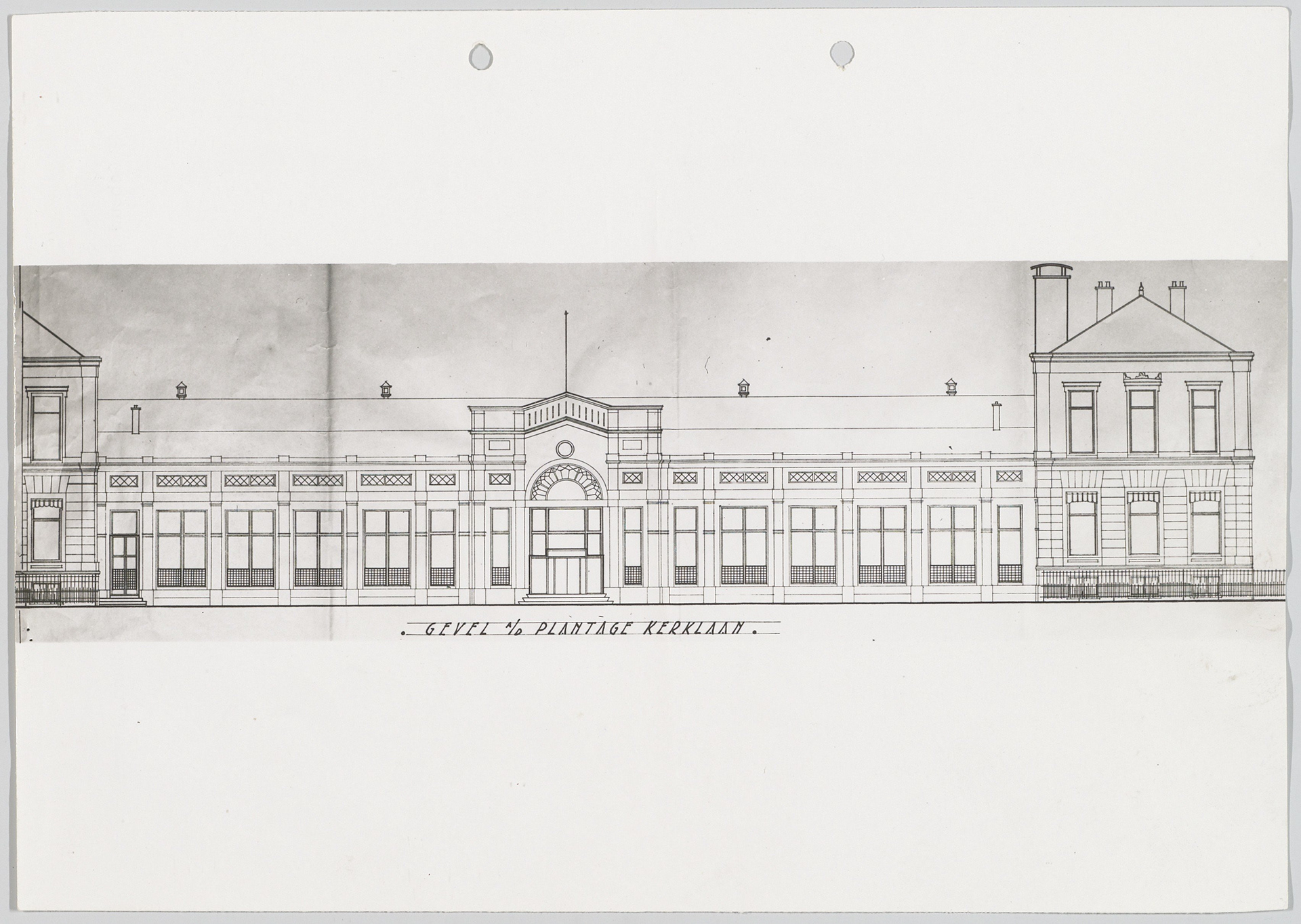

Facade drawing, Kerklaan - de Plantage, o.a. Gerlof Bartholomeus Salm, 1940

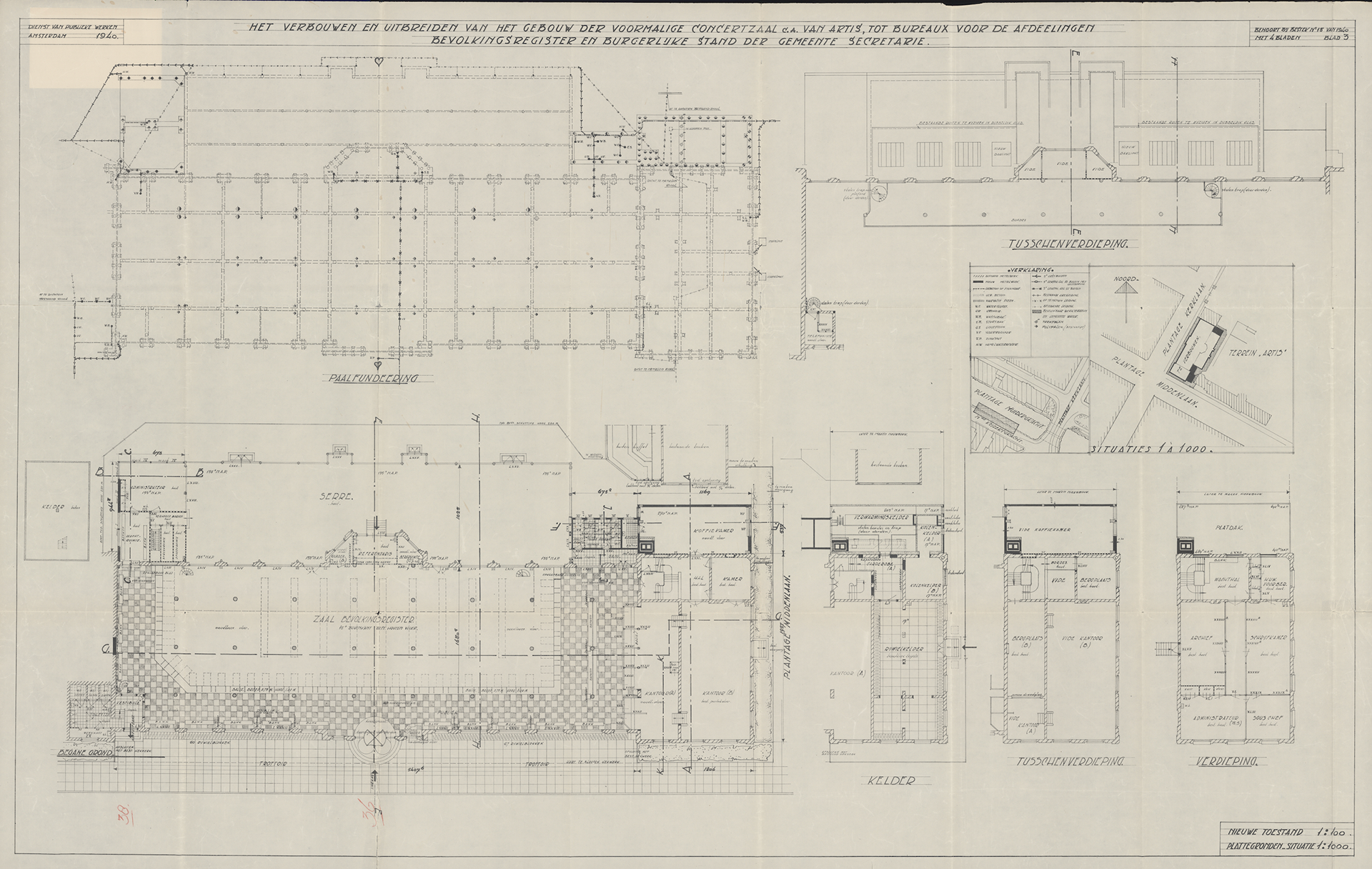

Floor plan 00 - de Plantage, o.a. Gerlof Bartholomeus Salm, 1940

Photograph - de Plantage

Facade drawing - own drawing

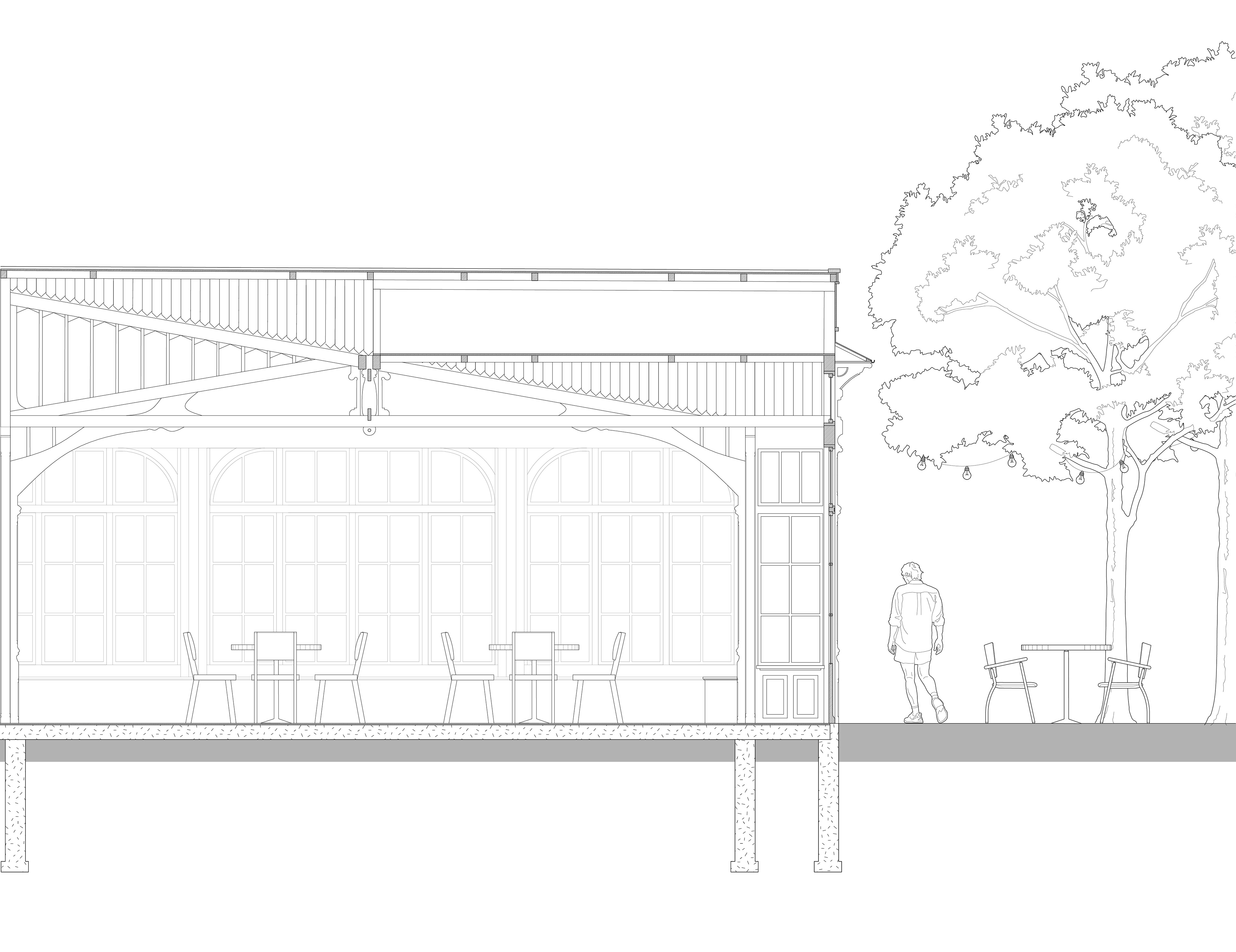

Section drawing - own drawing
